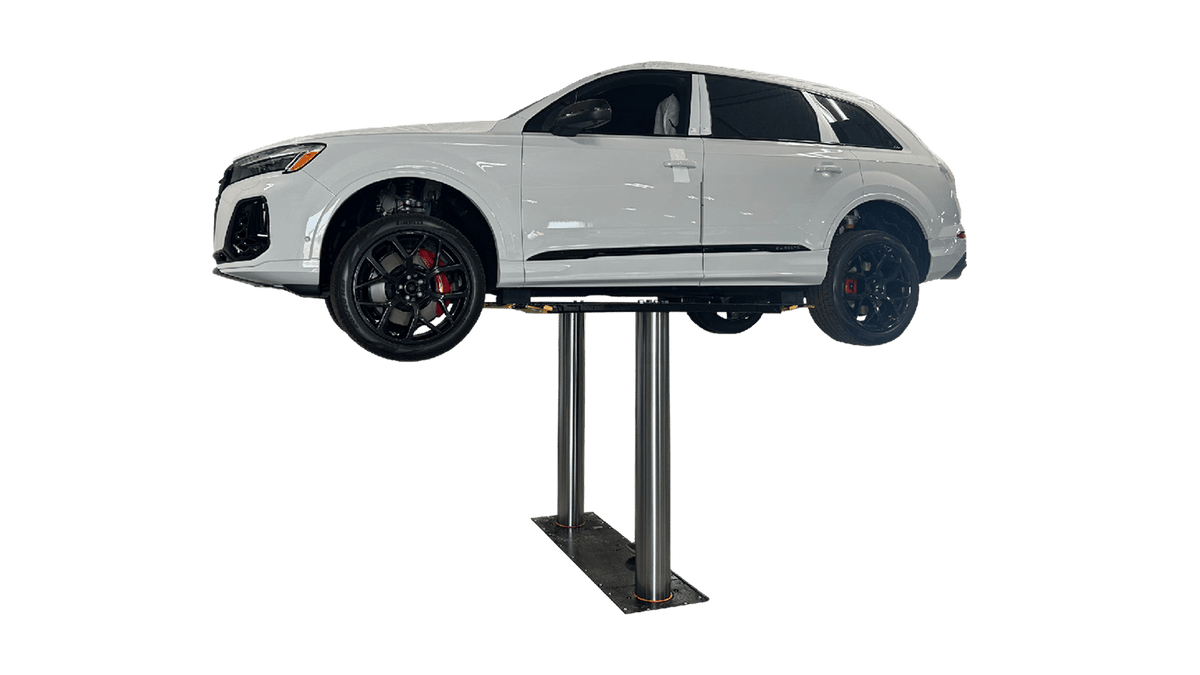

Challenger EV1020-XP9 9,000 lb inground drive-on pad lift

Challenger EV1020XP9 Series 9,000 lb Inground Lift

SKU: EV1020XP9 Category: Vehicle Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$15,148.28
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger EV1020-XP9 is a 9,000 lb cassette-style inground lift with drive-on express pads for faster vehicle spotting. Standard and QuickCycle configurations are available.

Built for your workflow

  • Automotive service
  • Confirm vehicle lifting points, load distribution and fit.

Plan your bay

  • Confirm the cassette, pit dimensions, drainage, concrete, electrical supply and compressed-air requirements before construction.
  • Have a qualified installer match the lift, arms and controls to the supplied model documentation and vehicle lifting points.
  • Use the base EV manual together with the inground pad-adapter supplement.
Installation details
Selected modelEV1020XP9

Model EV1020XP9

Selected configuration

Model
EV1020XP9
Configuration
Electric/Hydraulic Inground Lift With 8.5 In. Chrome Pistons, And Express Service Pad Featuring Flip-Up Ramps

Manufacturer specifications · selected model

Lifting Capacity
9,000 lbs.
Arms
n/a
Stroke
68”
Rise Height
70”
Width Overall
79.75”
Drive-Thru Clearance
-
Reach (Arm Minimum)
-
Reach (Arm Maximum)
-
Screw Pad Height
Minimum Pad Height: 2.25"
Capacity
4,500 lb. per pad
Guide Plunger Diam.
8.5”
Motor / Voltage
2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise
38 s
Air Required
90 - 120 psi
ALI/ETL Certified
Yes
Super Structure Colors
Black

Family specifications & equipment

Capacity
9,000 lb lifting capacity
Design & equipment
Drive-on express-pad configuration
Dimensions & reach
72 in. stroke; 74.75 in. rise height
Dimensions & reach
58, 66.5, or 75 in. platform length by setup
Power & controls
208–230V, single-phase power; 90–120 psi air
Design & equipment
ALI/ETL certified

Manuals & specifications

Installation, operation & maintenance manual Additional manufacturer manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
