Challenger E15 15,000 lb Two-Post Lift

SKU: E15 Category: Vehicle Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$15,103.42
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

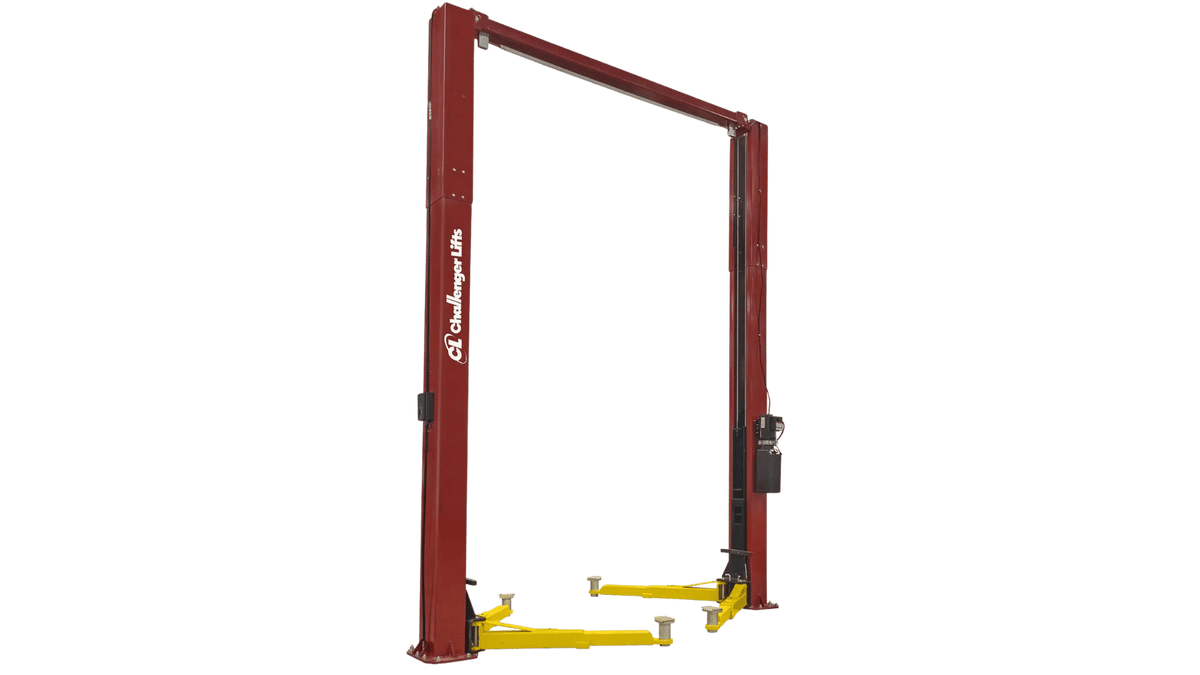

The Challenger E15 is a 15,000 lb symmetric two-post lift designed as an economical solution for trucks and other heavy vehicles within rated capacity. It includes a built-in height extension and stack adapters.

Built for your workflow

  • Automotive service
  • Confirm vehicle lifting points, load distribution and fit.

Plan your bay

  • Have a qualified installer verify the concrete, anchors, ceiling clearance and electrical supply against the exact model manual.
  • Confirm vehicle weight distribution, individual arm limits and approved lifting points; rated total capacity alone does not establish fit.
Installation details
Selected modelE15

Model E15

Selected configuration

Model
E15
Configuration
Heavy-Duty 2-Post Symmetric, 2-Stage Front And 2-Stage Rear Arms, 15,000 Lbs With Adjustable Height (174 In. Or 198 In.)

Manufacturer specifications · selected model

Lifting Capacity
15,000 lbs.
Arms
2-stage front/2-stage rear
Lifting Configuration
Symmetric
Rise Height
6' 5.75"
Overall Height
14' 6 / 16' 6'
Overall Width
12' 13"
Drive-Thru Clearance
9' 1.375"
Floor to Overhead Switch
13' 10" / 15' 10"
Minimum Arm Reach
36.5”
Maximum Arm Reach
55”
Screw Pad Height
5.25”-6.75”
Ceiling Height Required
14' 7" / 16' 7"
Motor / Voltage
2HP, 208v - 230v
Speed of Rise
75 s
ALI/ETL Certified
Yes
Colors Available
Red, Blue

Family specifications & equipment

Capacity
15,000 lb lifting capacity
Design & equipment
2-stage front and rear arms
Dimensions & reach
77.75 in. rise height
Dimensions & reach
14 ft 6 in. or 16 ft 6 in. overall height
Power & controls
208–230V, single-phase power
Design & equipment
ALI/ETL certified

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
