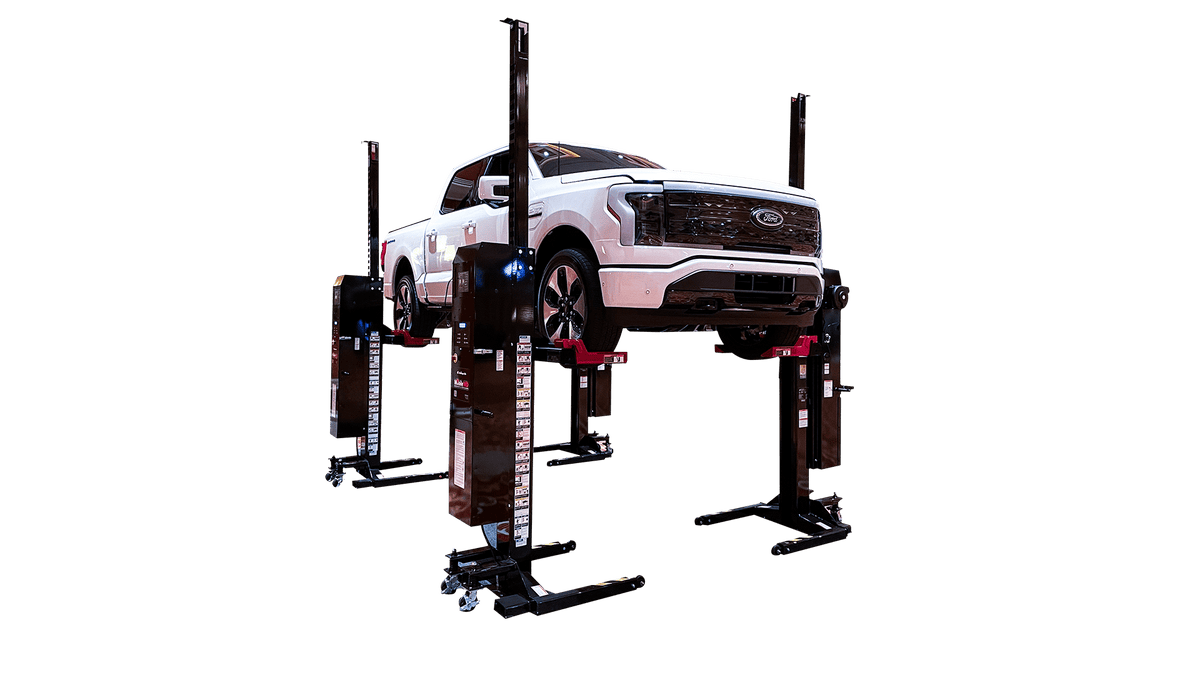

Challenger CLMM-5000 5,000 lb mobile column lift

Challenger CLMM-5000 5,000 lb Mobile Column Lift

SKU: CLMM-5000 Category: Mobile Column Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$9,449.06
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger CLMM-5000 is a wireless, battery-powered medium-duty mobile column sold as part of a four-column system. It provides open under-vehicle access and can be moved to any suitable solid, level service area.

At a glance

Rated capacity
5,000 lb lifting capacity per column; 20,000 lb with four columns
Lift design
Mobile Column Lift
Configurations
1 available
View full specifications

Built for your workflow

  • Heavy-duty vehicle service
  • Verify tire fit, axle loads and the complete column-system rating.

Plan your bay

  • Confirm per-column and complete-system ratings, tire fit, axle loads and approved column combinations.
  • Use a level, load-rated surface and follow the exact manual for synchronization, charging and lifting procedures.
Installation details
Selected modelCLMM-5000

Model CLMM-5000

Selected configuration

Model
CLMM-5000
Configuration
5,000 Lbs. Capacity (Per Column) Mobile Column Lift - Battery Powered And Wireless (Sold Seperately, Set Of 4)

Manufacturer specifications · selected model

Lifting Capacity Per Column
5,000 lbs.
Height of Lift Unit
88.5"
Height of Lift Unit at Full Rise
157"
Width of Lift Unit
38.5"
Length of Lift Unit
46.75"
Maximum Lift Height (4 units)
69"
Maximum Lift Height (2 units - Normal Mode)
32"
Min-Max Wheel Diameter
6" - 22"
Max. Hydraulic System Operating Pressure
2,230 psi
Lift Speed (Max Load)
60" per min.
Weight of Lift Unit
870 lbs
Footprint of Lift Unit
450 sq. in.
Ground Pressure for each Lift (Max. Load)
13.04 psi
Turning Radius of Lift Unit
50.5"
Operating Peak Power
4HP
Operating Voltage
24 VDC nominal
Charger Voltage Required
120-240 VAC @ 50-60 Hz
Charger Amps Required
2.8 Amps
Colors Available
Black

Family specifications & equipment

Capacity
5,000 lb lifting capacity per column; 20,000 lb with four columns
Design & equipment
6–22 in. supported wheel diameter
Dimensions & reach
69 in. maximum lift height
Design & equipment
24V rechargeable system with 120–240V charging
Design & equipment
Published lift-unit weight: 870 lb

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
