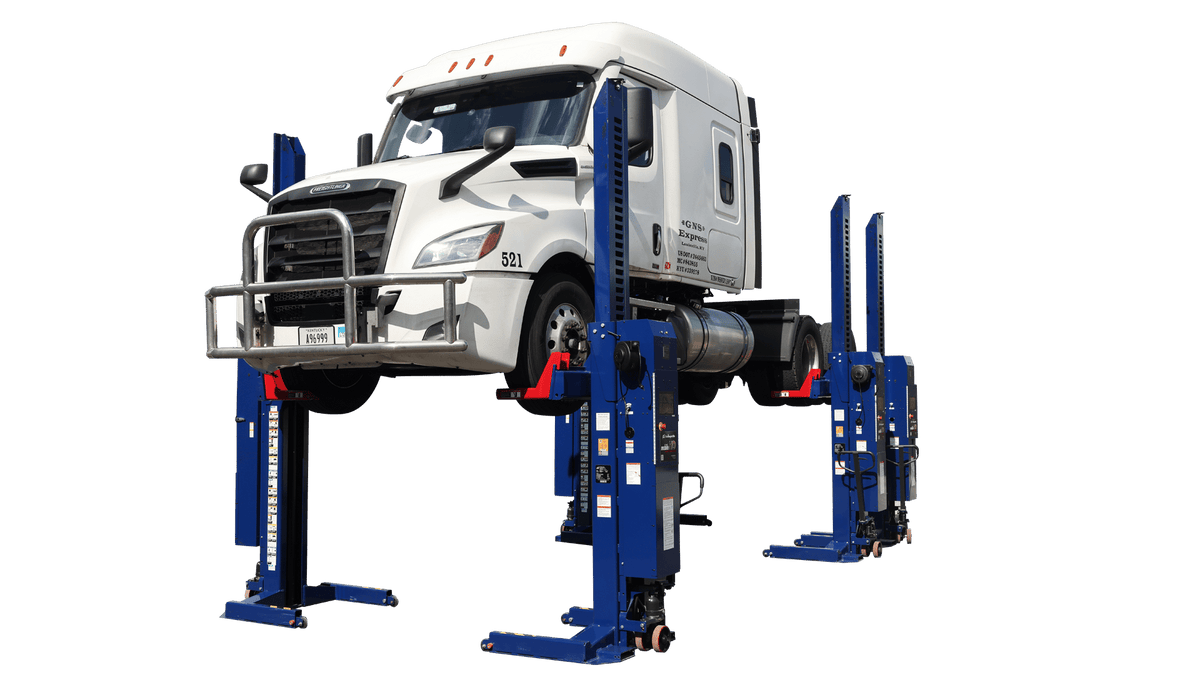

Challenger CLHM-140 14,000 lb mobile column lift

Challenger CLHM-140 14,000 lb Mobile Column Lift

SKU: CLHM-140 Category: Mobile Column Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$12,648.78
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger CLHM-140 is a wireless, battery-powered mobile column designed for heavy-duty vehicle service. Columns are sold individually and can be configured in coordinated lifting systems.

At a glance

Rated capacity
14,000 lb lifting capacity per column
Lift design
Mobile Column Lift
Configurations
1 available
View full specifications

Built for your workflow

  • Heavy-duty vehicle service
  • Verify tire fit, axle loads and the complete column-system rating.

Plan your bay

  • Confirm per-column and complete-system ratings, tire fit, axle loads and approved column combinations.
  • Use a level, load-rated surface and follow the exact manual for synchronization, charging and lifting procedures.
  • Listed capacity is per column. Confirm the number of columns included and the system limit for the actual axle loads.
Installation details
Selected modelCLHM-140

Model CLHM-140

Selected configuration

Model
CLHM-140
Configuration
14,000 Lbs. Capacity (Per Column) Mobile Column Lift - Battery Powered, Wireless, Adjustable Carriage Assembly Accommodates Wheel Diameters From 5 In. To 24.5 In. (Sold Seperately, Max Of 8)

Manufacturer specifications · selected model

Lifting Capacity Per Column
14,000 lbs.
Height of Lift Unit
88.5"
Height of Lift Unit at Full Rise
157.125"
Width of Lift Unit
44.25"
Length of Lift Unit
53.625"
Maximum Lift Height (4 or more units)
69"
Maximum Lift Height (2 units - Normal Mode)
32"
Min-Max Wheel Diameter
5" - 24.5"
Max. Hydraulic System Operating Pressure
2,180 psi
Lift Speed (Max Load)
60" per min.
Weight of Lift Unit
1,485 lbs
Footprint of Lift Unit
560 sq. in.
Ground Pressure for each Lift (Max. Load)
27.7 psi
Turning Radius of Lift Unit
47"
Operating Peak Power
4HP
Operating Voltage
24 VDC nominal
Charger Voltage Required
120 VAC @ 60 Hz
Charger Amps Required
1.3 Amps
ALI/ETL Certified
Yes
Colors Available
Blue

Family specifications & equipment

Capacity
14,000 lb lifting capacity per column
Design & equipment
5–24.5 in. supported wheel diameter
Dimensions & reach
69 in. maximum lift height with four or more units
Design & equipment
24V rechargeable system
Design & equipment
Published lift-unit weight: 1,485 lb
Design & equipment
ALI/ETL certified

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet Manufacturer product page Manufacturer 140 PARTS LIST

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
