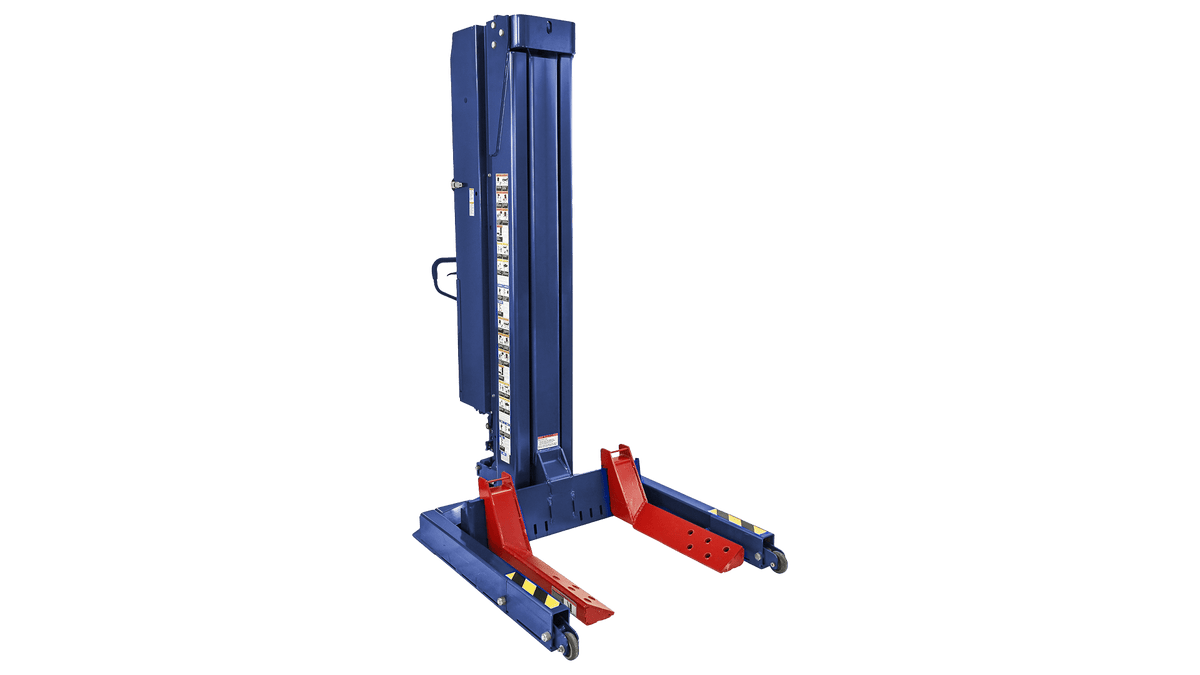

Challenger CLHM-125XF 12,500 lb extended-fork mobile column lift

Challenger CLHM-125XF 12,500 lb Mobile Column Lift

SKU: CLHM-125XF Category: Mobile Column Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$13,528.73
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger CLHM-125XF is a wireless, battery-powered mobile column with extended 22-inch forks for recessed wheels and dual-tire applications. Columns are sold individually and can operate in groups of up to eight.

At a glance

Rated capacity
12,500 lb lifting capacity per column
Lift design
Mobile Column Lift
Configurations
1 available
View full specifications

Built for your workflow

  • Heavy-duty vehicle service
  • Verify tire fit, axle loads and the complete column-system rating.

Plan your bay

  • Confirm per-column and complete-system ratings, tire fit, axle loads and approved column combinations.
  • Use a level, load-rated surface and follow the exact manual for synchronization, charging and lifting procedures.
  • Listed capacity is per column. Confirm the number of columns included and the system limit for the actual axle loads.
Installation details
Selected modelCLHM-125XF

Model CLHM-125XF

Selected configuration

Model
CLHM-125XF
Configuration
12,500 Lbs. Capacity (Per Column) Mobile Column Lift Comes Standard With 22-Inch Extended Forks - Battery Powered, Wireless, Adjustable Carriage Assembly Accommodates Wheel Diameters From 5 In. To 24.5 In. (Sold Seperately, Max Of 8)

Manufacturer specifications · selected model

Lifting Capacity Per Column
12,500 lbs.
Height of Lift Unit
88.5"
Width of Lift Unit
44.25"
Length of Lift Unit
65.3"
Maximum Lift Height (4 or more units)
69"
Maximum Lift Height (2 units - Normal Mode)
32"
Min-Max Wheel Diameter
5" - 24.5"
Max. Hydraulic System Operating Pressure
2,100 psi
Lift Speed (Max Load)
60" per min.
Weight of Lift Unit
1,557 lbs
Footprint of Lift Unit
719 sq. in.
Ground Pressure for each Lift (Max. Load)
19.6 psi
Turning Radius of Lift Unit
54"
Operating Peak Power
4HP
Operating Voltage
24 VDC nominal
Charger Voltage Required
120 VAC @ 60 Hz
Charger Amps Required
2.8 Amps
ALI/ETL Certified
Yes
Colors Available
Blue

Family specifications & equipment

Capacity
12,500 lb lifting capacity per column
Design & equipment
5–24.5 in. supported wheel diameter
Dimensions & reach
69 in. maximum lift height with four or more units
Design & equipment
24V rechargeable system with 120V charging
Design & equipment
Published lift-unit weight: 1,557 lb
Design & equipment
ALI/ETL certified

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
