Challenger CLFP9 9,000 lb Two-Post Lift

SKU: CLFP9 Category: Vehicle Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$7,172.41
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

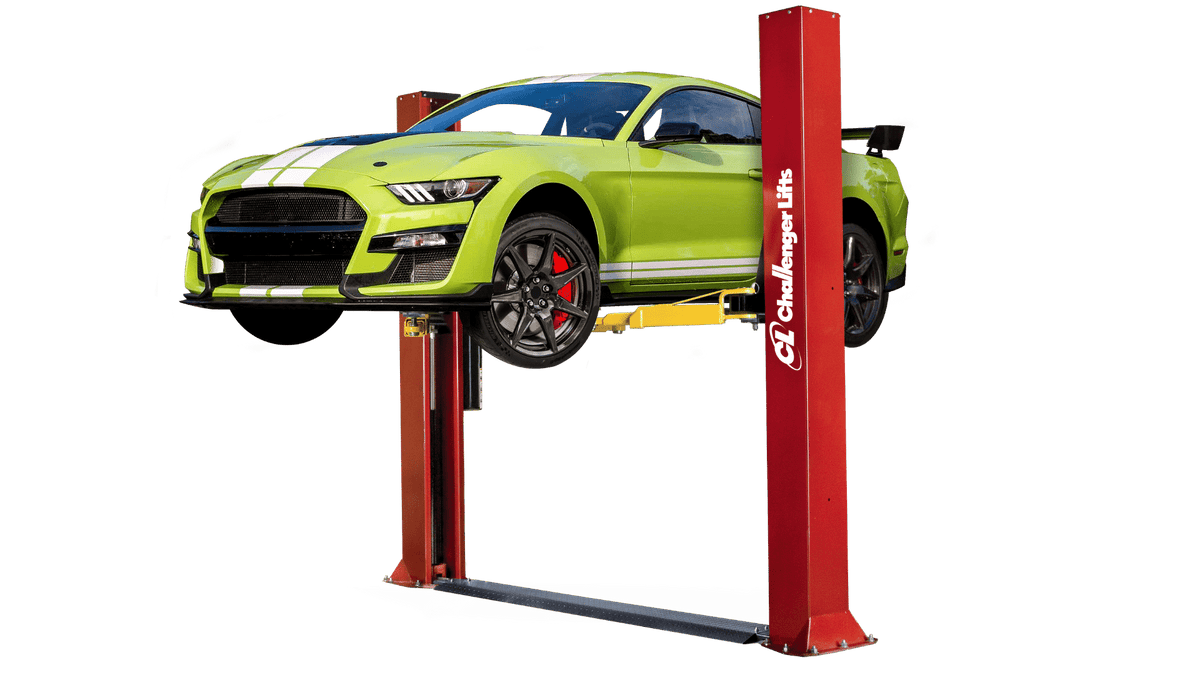

The Challenger CLFP9 is a 9,000 lb open-top, floor-plate two-post lift designed for low-ceiling installations in professional shops and enthusiast garages.

Built for your workflow

  • Automotive service
  • Confirm vehicle lifting points, load distribution and fit.

Plan your bay

  • Have a qualified installer verify the concrete, anchors, ceiling clearance and electrical supply against the exact model manual.
  • Confirm vehicle weight distribution, individual arm limits and approved lifting points; rated total capacity alone does not establish fit.
Installation details
Selected modelCLFP9

Model CLFP9

Selected configuration

Model
CLFP9
Configuration
Symmetric Low Ceiling 2-Post Floor Plate Lift With Dual Point Mechanical Lock Release (120.875 In. Height), 3-Stage Front & Rear Arm Design

Manufacturer specifications · selected model

Lifting Capacity
9,000 lbs.
Lifting Configuration
Symmetric
Arms
3-stage front/3-stage rear
Rise Height
78.125”
Overall Height
120.875“
Overall Height (Cylinder Extended)
120.875“
Overall Width
137.5“
Drive-Thru Clearance
98.187“
Front Arm Reach
24.5“ / 44.5“
Rear Arm Reach
24.5“ / 44.5“
Screw Pad Height
4” / 5.875“
Inside Columns
109”
Motor / Voltage
2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise
50 s
Ceiling Height Required
10’ 2“
Colors Available
Red, Blue

Family specifications & equipment

Capacity
9,000 lb lifting capacity
Design & equipment
3-stage front and rear arms
Dimensions & reach
10 ft 0.875 in. overall height
Dimensions & reach
Approximately 50-second rise time
Power & controls
208–230V, single-phase power
Design & equipment
ALI/ETL certified

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
