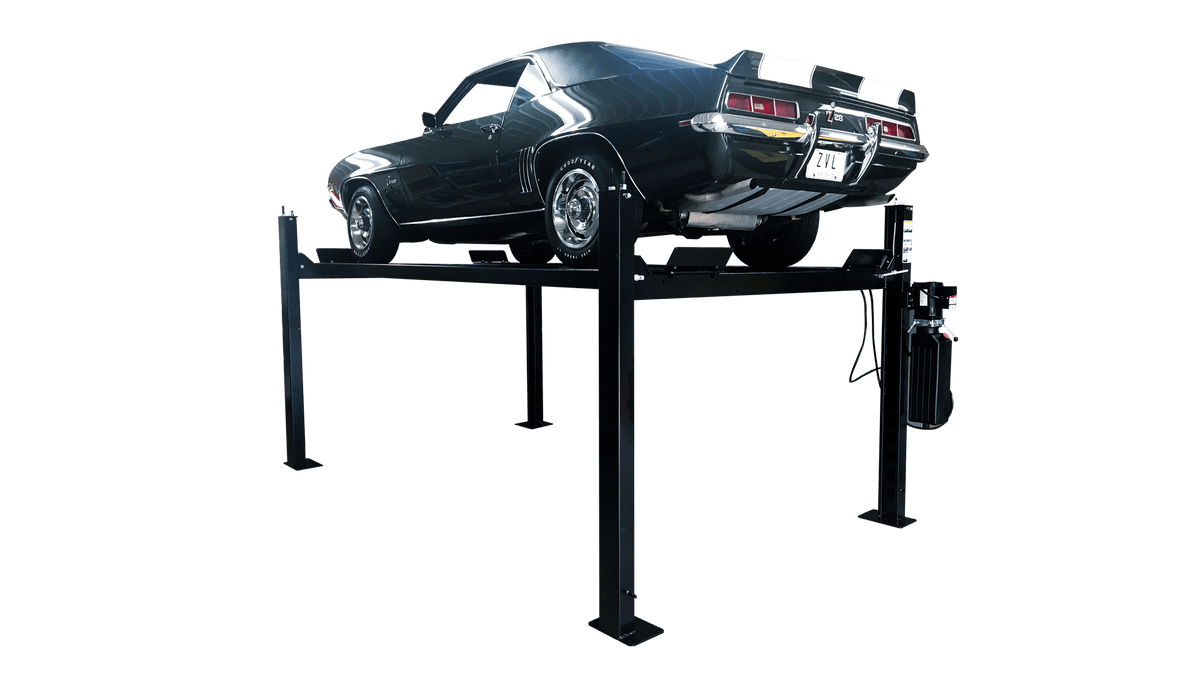

Challenger CL4P9W 9,000 lb wide home storage four-post lift

Challenger CL4P9W Series 9,000 lb Home Storage Four-Post Lift

SKU: CL4P9W-ER Category: Vehicle Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$6,898.71
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger CL4P9W is the wide configuration of Challenger’s 9,000 lb home-storage four-post lift. It is designed for vehicle storage and light-duty general service, with commercial-grade formed runways and adjustable lock ladders.

At a glance

Rated capacity
9,000 lb lifting capacity
Lift design
Home Storage Four-Post Lift
Configurations
2 available
View full specifications

Built for your workflow

  • Vehicle storage
  • Light-duty vehicle service within rated capacity

Plan your bay

  • Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
  • Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
Installation details
Selected modelCL4P9W-ER

Model CL4P9W-ER

Selected configuration

Model
CL4P9W-ER
Configuration
Free-standing or bolt-to-floor 4-post home storage/light duty service. 115v or 220v power unit single hydraulic cylinder with cable system, extended height & width version. 80 in. clearance height for storage. Overall length - 233.5 in., with extended ramps

Manufacturer specifications · selected model

Lifting Capacity
9,000 lbs.
Length Overall
233.5”
Width Overall
127.25”
Inside Columns
110”
Between Columns
185.75”
Height of Columns
8’ .5”
Height of Runways (Floor to top of Runway)
7”
Width of Runways
20”
Width Between Runways
38”
Rise Height (Top of Runway at top position)
85.5”
Clearance Height (Storage)
80"
Max. Wheelbase*
179”
Crossbeam Clearance Height
80”
Motor
1HP/2HP
Voltage (1 Phase Std)
115v/230v
Speed of Rise (115v/230v)
120/60 s
Min. Recommended Bay Size
14’ x 22’
ALI/ETL Certified
Yes
Colors Available
Black

Family specifications & equipment

Capacity
9,000 lb lifting capacity
Design & equipment
Wide home-storage configuration
Dimensions & reach
Up to 85.5 in. service rise height
Dimensions & reach
Up to 80 in. clearance in the top locked position
Design & equipment
Single-point manual lock release; no air required
Design & equipment
ALI/ETL certified

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
