At a glance
- Rated capacity
- 9,000 lb lifting capacity
- Lift design
- Home Storage Four-Post Lift
- Configurations
- 2 available

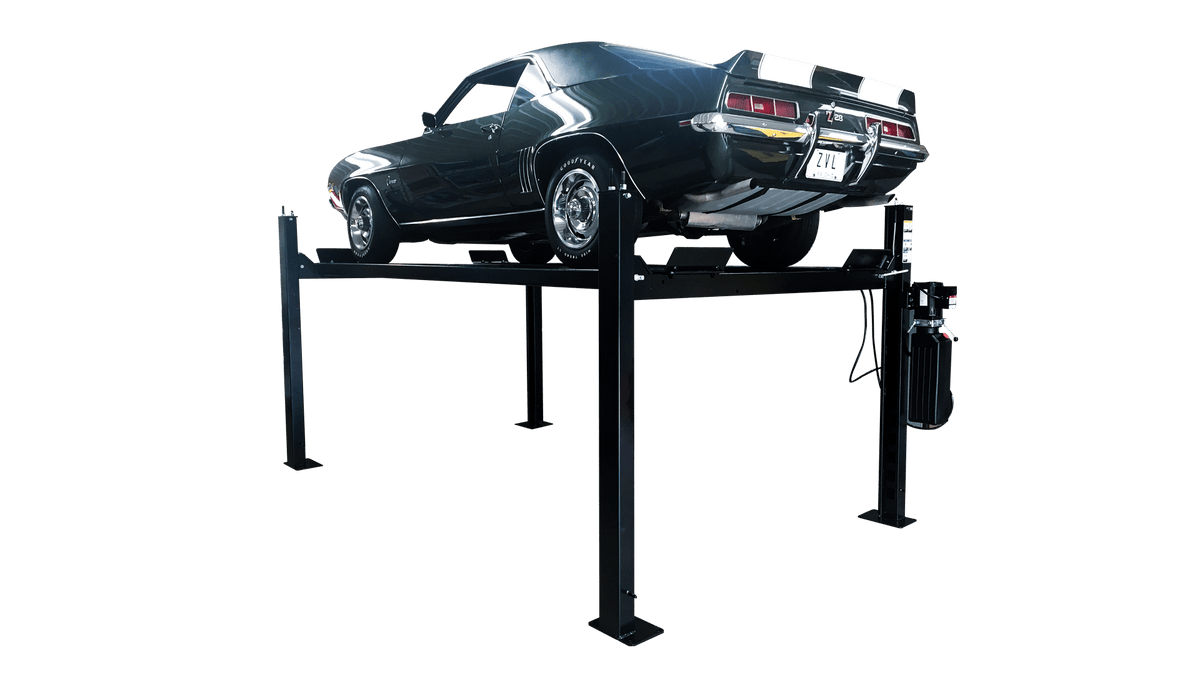

Challenger CL4P9S Series 9,000 lb Home Storage Four-Post Lift
Built for
Professional Service Facilities
Support
Installation Available
Coverage
Nationwide
Regular price
$6,499.69
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Lift overview
Built around your service bay.
The Challenger CL4P9S is a 9,000 lb ALI/ETL-certified four-post lift for home storage and light-duty service. It provides greater capacity and storage clearance than the CL4P7 while retaining a free-standing design and a built-in runway rail for compatible accessories.
Built for your workflow
- Vehicle storage
- Light-duty vehicle service within rated capacity
Plan your bay
- Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
- Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
- The current manual requires reinforced concrete at least 4 in. thick, rated 3,500 psi or greater and cured at least 28 days. Anchoring is optional on a sufficiently level floor but required when floor slope exceeds the manual's limit. The current manufacturer documents do not publish exact packaged shipping weights for CL4P9S-ER or CL4P9S-SR, so freight weight is confirmed at quote.
Selected modelCL4P9S-ER
Model CL4P9S-ER
Selected configuration
- Model
- CL4P9S-ER
- Ramp configuration
- Extended-ramp package
Manufacturer specifications · selected model
- Lifting Capacity
- 9,000 lbs.
- Length Overall
- 209.5”
- Width Overall
- 112.25”
- Inside Columns
- 95”
- Between Columns
- 160.5”
- Height of Columns
- 7’ .5”
- Height of Runways (Floor to top of Runway)
- 7”
- Width of Runways
- 20”
- Width Between Runways
- 38”
- Rise Height (Top of Runway at top position)
- 73.25”
- Clearance Height (Storage)
- 67.75"
- Max. Wheelbase*
- 155”
- Crossbeam Clearance Height
- 68”
- Motor
- 1HP/2HP
- Voltage (1 Phase Std)
- 115v/230v
- Speed of Rise (115v/230v)
- 120/60 s
- Min. Recommended Bay Size
- 11’ x 22’
- ALI/ETL Certified
- Yes
- Colors Available
- Black
Family specifications & equipment
- Capacity
- 9,000 lb lifting capacity
- Dimensions & reach
- Overall length: 209.5 in.; overall width: 112.25 in.
- Design & equipment
- 95 in. inside columns; 160.5 in. between columns
- Dimensions & reach
- 73.25 in. rise; 67.75 in. storage clearance
- Design & equipment
- 20 in. runways; 38 in. between runways
- Dimensions & reach
- Maximum wheelbase: 155 in.
- Power & controls
- 1 HP/115 V or 2 HP/230 V single-phase power unit
- Dimensions & reach
- Approximate rise time: 120 seconds at 115 V or 60 seconds at 230 V
- Design & equipment
- Minimum recommended bay: 11 x 20 ft
Manuals & specifications
Installation, operation & maintenance manual Download spec sheet Manufacturer product page CL4P9 installation, operation and maintenance manual CL4P7/CL4P9 specification sheetUse the manual for the selected control package and model revision.
Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
Find the right configuration.
Compare column height, controls and equipment packages. Your selected model stays connected to the quote button above.
Selected model
CL4P9S-ER
- Ramp configuration
- Extended-ramp package
Configuration includes
Verify the final package and any additional adapters for your vehicle application.
Design & equipment
Vehicle storage and service layout.
Design & equipment
Single-point manual lock release.
Design & equipment
Optional drip trays and jacking equipment.
Design & equipment
9,000 lb lifting capacity
Design & equipment
Overall length: 209.5 in.; overall width: 112.25 in.
Design & equipment
95 in. inside columns; 160.5 in. between columns
Design & equipment
73.25 in. rise; 67.75 in. storage clearance
Design & equipment
20 in. runways; 38 in. between runways
Design & equipment
Maximum wheelbase: 155 in.
Design & equipment
1 HP/115 V or 2 HP/230 V single-phase power unit
Design & equipment
Approximate rise time: 120 seconds at 115 V or 60 seconds at 230 V
Design & equipment
Minimum recommended bay: 11 x 20 ft
Installation & service
Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
Installation & service
Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
Installation & service
The current manual requires reinforced concrete at least 4 in. thick, rated 3,500 psi or greater and cured at least 28 days. Anchoring is optional on a sufficiently level floor but required when floor slope exceeds the manual's limit. The current manufacturer documents do not publish exact packaged shipping weights for CL4P9S-ER or CL4P9S-SR, so freight weight is confirmed at quote.
Warranty
Confirm the manufacturer’s written warranty for the supplied model and installation with your quote.
Shipping & lead time
Freight, availability, lead time and unloading requirements are confirmed with your quote.
