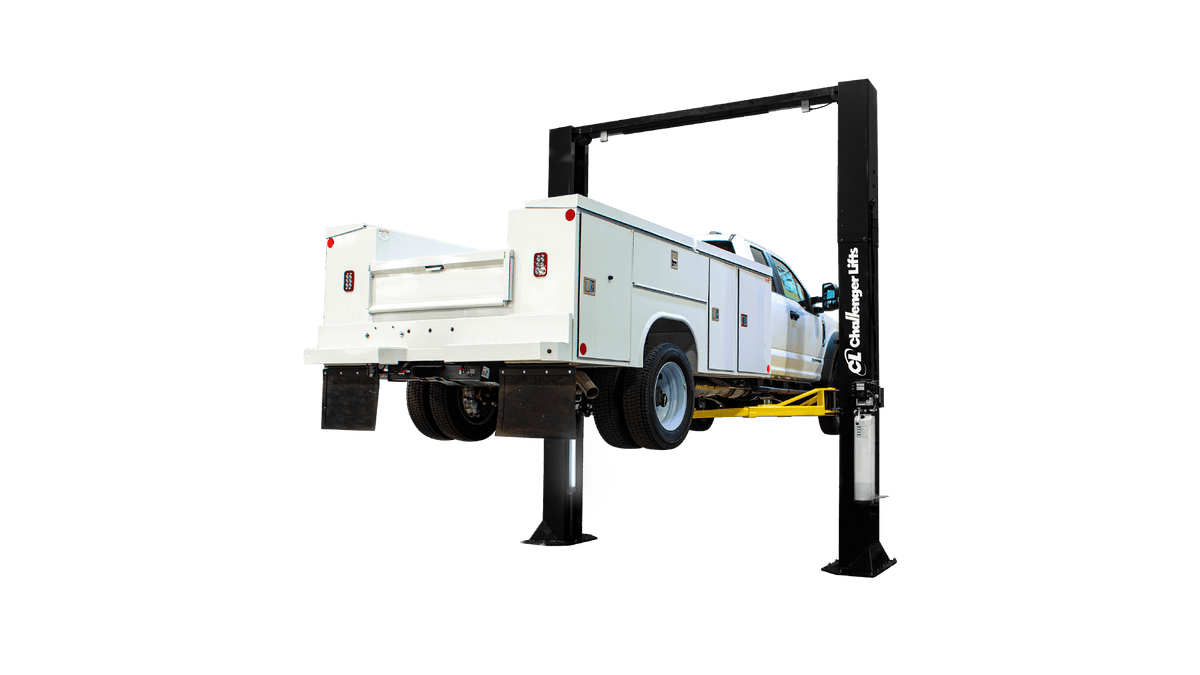

Challenger CL20 20,000 lb two-post lift

Challenger CL20 Series 20,000 lb Two-Post Lift

SKU: CL20 Category: Vehicle Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$30,214.21
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger CL20 is a 20,000 lb adjustable two-post lift engineered for heavy fleet vehicles. Its 2-stage arms, adjustable width, and optional column extensions accommodate large and tall vehicles within rated capacity.

Built for your workflow

  • Automotive service
  • Confirm vehicle lifting points, load distribution and fit.

Plan your bay

  • Have a qualified installer verify the concrete, anchors, ceiling clearance and electrical supply against the exact model manual.
  • Confirm vehicle weight distribution, individual arm limits and approved lifting points; rated total capacity alone does not establish fit.
Installation details
Selected modelCL20

Model CL20

Selected configuration

Model
CL20
Configuration
Symmetric 2-Post Lift, 2-Stage Front And 2-Stage Rear Arms, Single Point Air Actuated Lock Release (174 In. Height)

Manufacturer specifications · selected model

Description
20K Standard
Lifting Capacity
20,000 lbs.
Lift Configuration
Symmetric
Arm Configuration
2-Stage Front/Rear
Maximum Load Per Arm
5,000 lbs.
Rise Height (Maximum with Stack Adapters)
Min. 76.6" Max. 84.6"
Overall Height Options
162", 168", 174"
Overall Width Options
166.75", 160.75", 154.75"
Drive-Thru Clearance
104.25", 110.25", 116.25"
Floor to Overhead Switch
155", 161", 167"
Arm Reach
Min. 38.5" Max. 62"
Screw Pad Height
Min. 6.2" Max. 7.6"
Between Columns
120", 126", 132"
Motor/Voltage
3HP, 1Ph, 60Hz, 208/230v
Air Supply Required
90-120 psi
Rise Time
62s
Min. Ceiling Height Required
13'8", 14'2", 14'8"

Family specifications & equipment

Capacity
20,000 lb lifting capacity
Design & equipment
2-stage front and rear arms
Dimensions & reach
Adjustable width and multiple height settings
Dimensions & reach
Approximately 62-second rise time
Power & controls
208–230V, single-phase power; 90–120 psi air
Design & equipment
ALI/ETL certified

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
