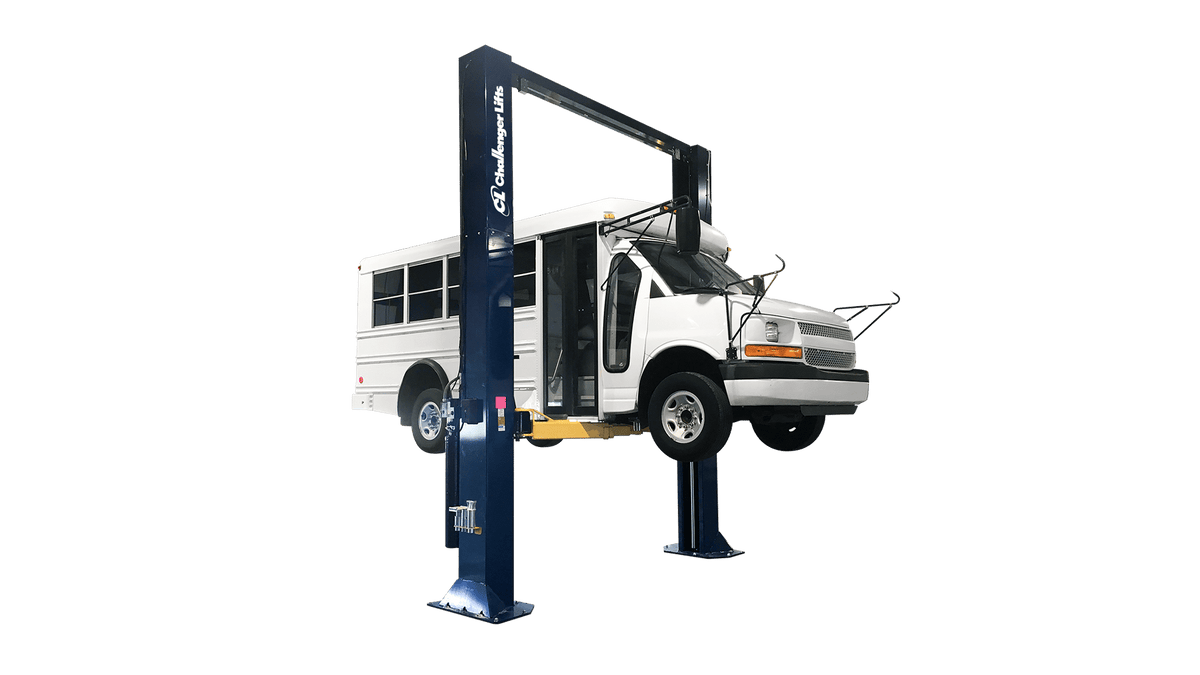

Challenger CL16 16,000 lb two-post lift

Challenger CL16 Series 16,000 lb Two-Post Lift

SKU: CL16-2-3S Category: Vehicle Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$25,234.27
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger CL16 is a 16,000 lb adjustable two-post lift with 3-stage front and rear arms for passenger vehicles, trucks, SUVs, EVs, and commercial-fleet vehicles within rated capacity.

Built for your workflow

  • Automotive service
  • Confirm vehicle lifting points, load distribution and fit.

Plan your bay

  • Have a qualified installer verify the concrete, anchors, ceiling clearance and electrical supply against the exact model manual.
  • Confirm vehicle weight distribution, individual arm limits and approved lifting points; rated total capacity alone does not establish fit.
Installation details
Selected modelCL16-2-3S

Model CL16-2-3S

Selected configuration

Model
CL16-2-3S
Configuration
Symmetric Cargo Vehicle 2-Post Lift, 3-Stage Front And 3-Stage Rear Arms & 2 Ft. Extensions (198 In. Height) - Designed Specifically For Cargo Van Style Carrying Vehicles.

Manufacturer specifications · selected model

Description
16K Extended Height
Lifting Capacity
16,000 lbs.
Lift Configuration
Symmetric
Arm Configuration
3-Stage Front/Rear
Maximum Load Per Arm
4,000 lbs.
Rise Height (Maximum with Stack Adapters)
Min. 75.5" Max. 81.5"
Overall Height Options
186", 192", 198"
Overall Width Options
166.75", 160.75", 154.75"
Drive-Thru Clearance
104.25", 110.25", 116.25"
Floor to Overhead Switch
179", 185", 191"
Arm Reach
Min. 36.625" Max. 75"
Screw Pad Height
Min. 5" Max. 6.5"
Between Columns
120", 126", 132"
Motor/Voltage
3HP, 1Ph, 60Hz, 208/230v
Air Supply Required
90-120 psi
Rise Time
62s
Min. Ceiling Height Required
15'8", 16'2", 16'8"

Family specifications & equipment

Capacity
16,000 lb lifting capacity
Design & equipment
3-stage front and rear arms
Dimensions & reach
Adjustable width and multiple height settings
Dimensions & reach
Approximately 62-second rise time
Power & controls
208–230V, single-phase power; 90–120 psi air
Design & equipment
ALI/ETL certified

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
