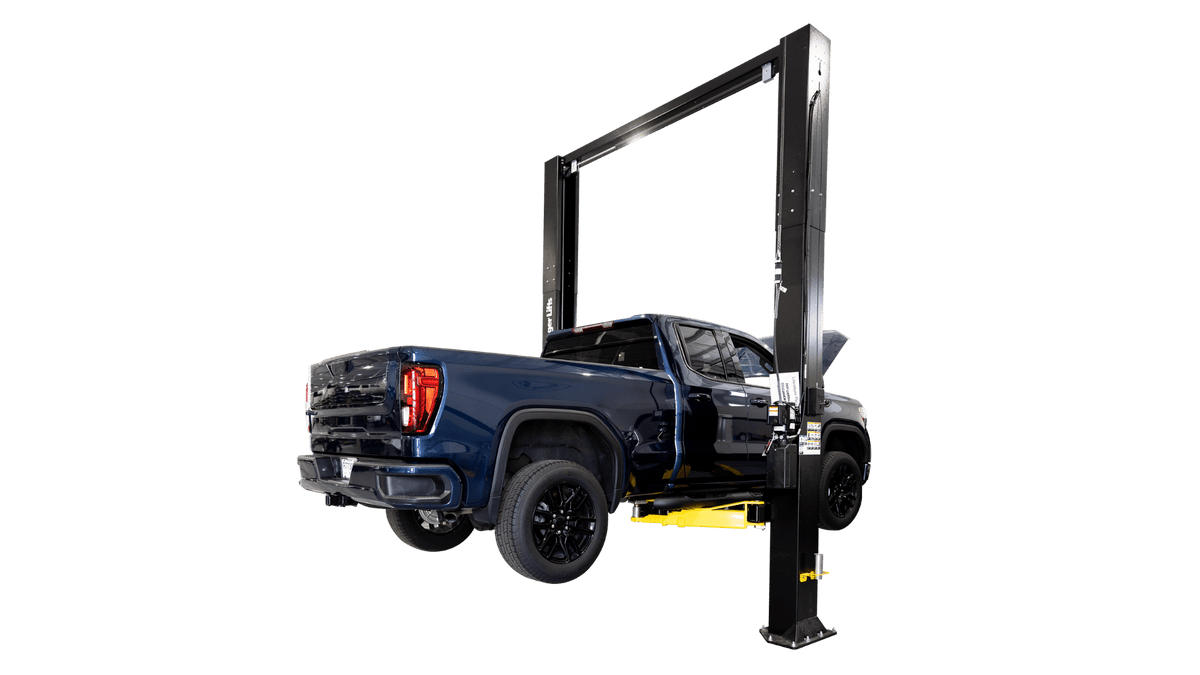

Challenger CL12A 12,000 lb adjustable two-post lift

Challenger CL12A Series 12,000 lb Two-Post Lift

SKU: CL12A Category: Vehicle Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$11,724.49
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger CL12A Series is a 12,000 lb adjustable two-post lift for cars, trucks, vans, SUVs, and EV-ready service bays. The family includes standard, low-ceiling, QuickCycle, dual-pendant, and EV-equipped configurations.

Built for your workflow

  • Automotive service
  • Confirm vehicle lifting points, load distribution and fit.

Plan your bay

  • Have a qualified installer verify the concrete, anchors, ceiling clearance and electrical supply against the exact model manual.
  • Confirm vehicle weight distribution, individual arm limits and approved lifting points; rated total capacity alone does not establish fit.
  • Use the standard or dual-pendant manual that matches the supplied control package.
Installation details
Selected modelCL12A

Model CL12A

Selected configuration

Model
CL12A
Configuration
Symmetric 2-Post Lift, 3-Stage Front And Rear Arms, Mechanical Lock Release (164 In. Height)

Manufacturer specifications · selected model

Lifting Capacity
12,000 lbs.
Lifting Configuration
Symmetric
Arms
3-stage front/3-stage rear
Rise Height
84.75"
Overall Height
13' 2" or 13' 8"
Adjustable Width Overall
142" / 148" / 154"
Drive-Thru Clearance
103.5”, 109.5" or 115.5"
Floor to Overhead Switch
12' 8" or 13' 2"
Arm Reach (Min.)
27.5”
Arm Reach (Max.)
59”
Screw Pad Height *
4.75" - 6.625"
Inside Columns
114.5" / 120.5" / 126.5"
Motor / Voltage
2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise (approximate)
63s
Ceiling Height Required
14' 3" Minimum
Colors Available
Red, Blue, Black
ALI® Certified
Yes

Family specifications & equipment

Capacity
12,000 lb lifting capacity
Design & equipment
Symmetric configuration with 3-stage front and rear arms
Dimensions & reach
Adjustable width and height options
Design & equipment
Standard and low-ceiling configurations
Power & controls
208–230V, single-phase power
Design & equipment
ALI/ETL certified

Manuals & specifications

Installation, operation & maintenance manual Additional manufacturer manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
