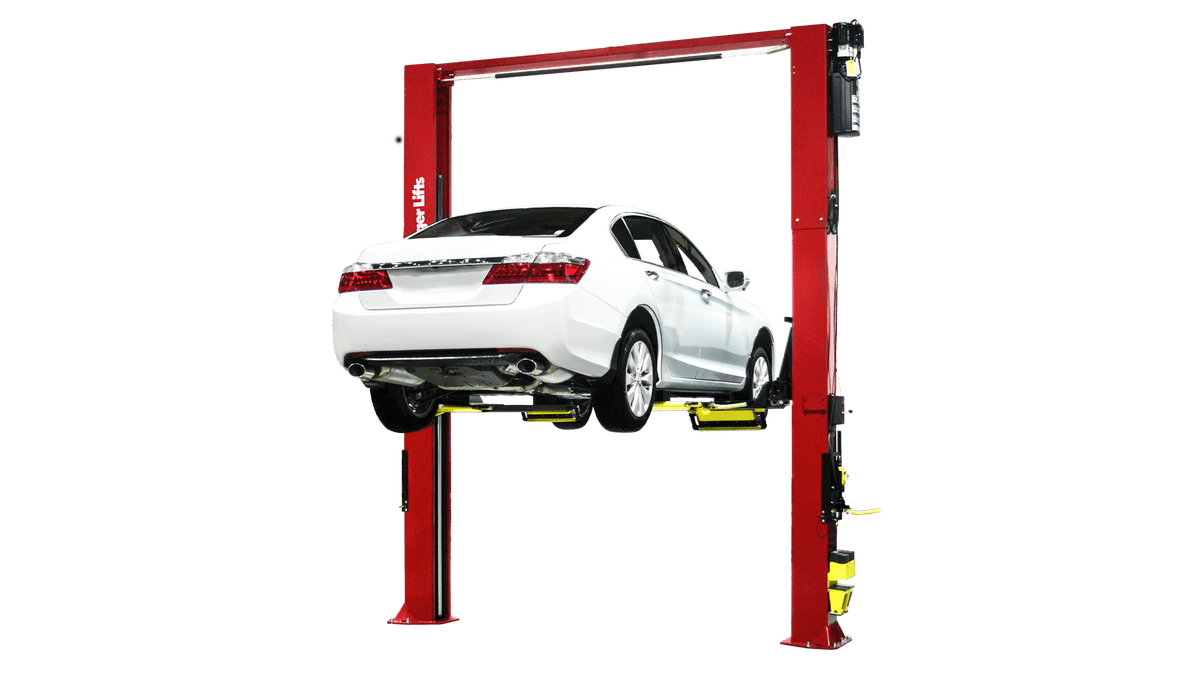

Challenger CL10A-XP9 9,000 lb drive-on pad two-post lift

Challenger CL10A-XP9 Series 9,000 lb Two-Post Lift

SKU: CL10A-XP9 Category: Vehicle Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$13,136.06
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger CL10A-XP9 is a 9,000 lb two-post lift with drive-on express pads for fast vehicle spotting. Standard and QuickCycle configurations are available in the current Challenger price guide.

Built for your workflow

  • Automotive service
  • Confirm vehicle lifting points, load distribution and fit.

Plan your bay

  • Have a qualified installer verify the concrete, anchors, ceiling clearance and electrical supply against the exact model manual.
  • Confirm vehicle weight distribution, individual arm limits and approved lifting points; rated total capacity alone does not establish fit.
  • Read the base lift manual together with the pad-adapter supplement. Honda/Acura installations require the corresponding manufacturer supplement.
Installation details
Selected modelCL10A-XP9

Model CL10A-XP9

Selected configuration

Model
CL10A-XP9
Configuration
2-Post Lift With Express Service Pad Featuring Flip-Up Ramps, Includes (4) 1.5 In. Rubber Spotting Blocks, (4) 3 In. Rubber Spotting Blocks And (2) Spotting Block Storage Caddies. Conventional Power Controls, Single-Point Mechanical Lock Release (143 In. Height At Full Stroke)

Manufacturer specifications · selected model

Lifting Capacity
9,000 lbs.
Lifting Configuration
Drive-on express pad
Rise Height
70”
Overall Height
140”
Overall Height (Cylinder Extended)
143”
2’ Height Extension Available
Yes
3’ Height Extension Available
Yes
Overall Width
138.5”
Drive-Thru Clearance
90”
Floor to Overhead Switch
134.5”
Platform Height
2.25“
Platform Width
24”
Platform Length
58” / 66.5” / 75”
Width Between Platforms
31.5“
Inside of Columns
110”
Motor / Voltage
2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise
38 s
Ceiling Height Required
12’
ALI/ETL Certified
Yes
Featuring Quick Cycle
-
Featuring Dual Pendant Controls
-
Colors Available
Red, Blue, Black

Family specifications & equipment

Capacity
9,000 lb lifting capacity
Design & equipment
Drive-on express-pad configuration
Dimensions & reach
Adjustable height and width installation options
Power & controls
208–230V, single-phase power
Dimensions & reach
Standard or QuickCycle rise-speed configurations
Design & equipment
ALI/ETL certified

Manuals & specifications

Installation, operation & maintenance manual Additional manufacturer manual Download spec sheet Manufacturer product page Manufacturer Product Manual Honda / Acura

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
