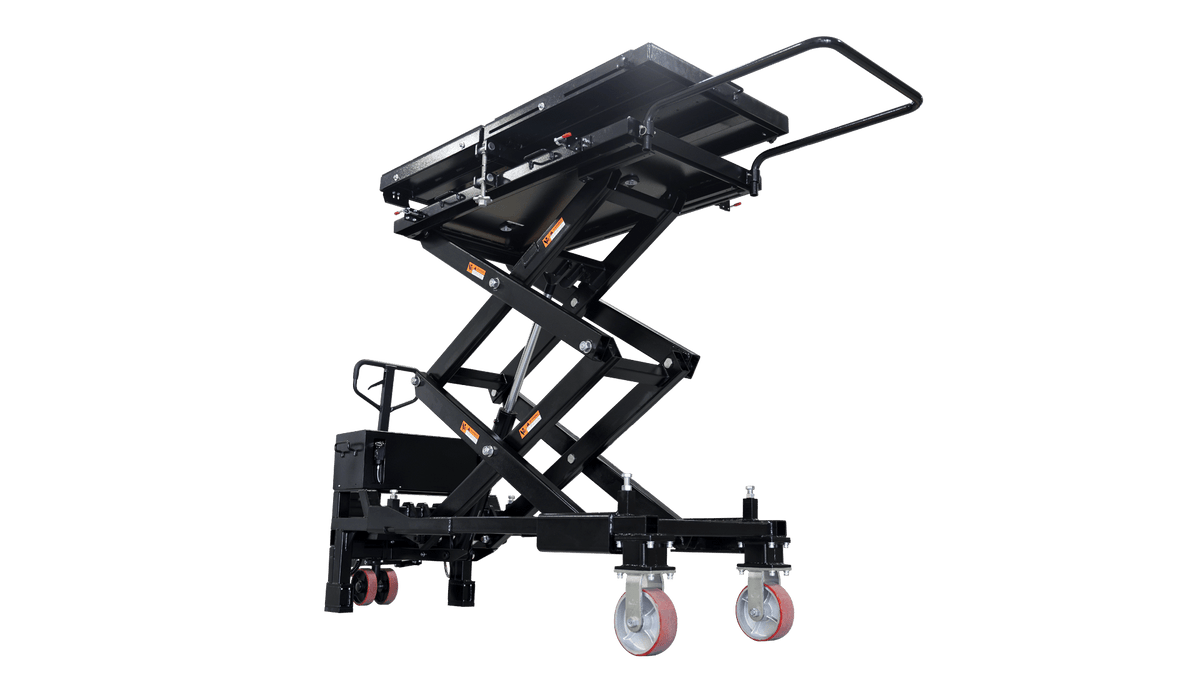

Challenger BT3300 3,300 lb lift table

Challenger BT3300 3,300 lb Lift Table

SKU: BT3300 Category: Shop Support Equipment
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$13,339.74
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger BT3300 is a 3,300 lb hydraulic lift table designed for EV batteries, engines, drivetrains, rear differentials, fuel tanks, and other heavy components. Its pallet-jack-style handle, adjustable platform, side-shift, and 6-degree tilt help technicians position components precisely.

Built for your workflow

  • EV battery and heavy-component handling
  • Verify component weight, load center and platform fit.

Plan your bay

  • Confirm component weight, load center, platform adjustment and clearance against the BT3300 manual.
  • This is a component lift table, not a whole-vehicle lift.
Installation details
Selected modelBT3300

Model BT3300

Selected configuration

Model
BT3300
Configuration
3,300 lb capacity EV battery and component lift table

Manufacturer specifications · selected model

Lifting Capacity
3300 lbs.
Rise Height
76.77"
Collapsed Height
29.53"
Platform Adjust Height [S]
1.77"
Platform Length
68.54“- 81.34"
Platform Width
31.50"
Platform Height
9.02" (±1.77")
Base Height
8.07"
Wheel Diameter
7.87"
Overall length
116.38"
Motor
2HP
Power supply
110V-1Ph-60Hz
Current Draw
14 Amps
Control voltage
24V
Hydraulic Pressure
3625psi
Safety Limit Switch
Yes
Full stoke time (Rated Load)
45s / 70s
Full descent time (Rated Load)
55s

Family specifications & equipment

Capacity
3,300 lb lifting capacity
Dimensions & reach
76.77 in. maximum rise height; 29.53 in. collapsed height
Dimensions & reach
68.54–81.34 in. platform length; 31.50 in. platform width
Dimensions & reach
116.38 in. overall length
Power & controls
2 HP motor; 110V, single-phase, 60 Hz power
Power & controls
24V pendant controls
Design & equipment
ASME PASE-2019 compliant

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
