At a glance
- Rated capacity
- 18,000 lb lifting capacity
- Lift design
- Alignment Lift
- Configurations
- 1 available

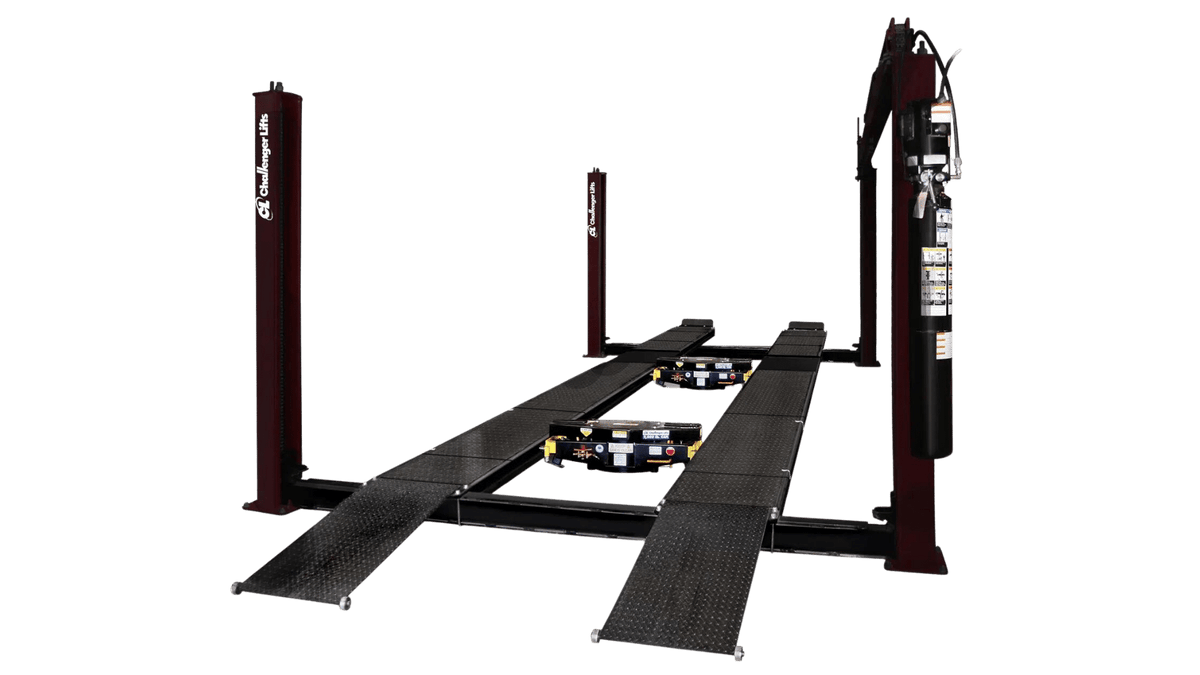

Challenger AR44018AR 18,000 lb Alignment Lift
Built for
Professional Service Facilities
Support
Installation Available
Coverage
Nationwide
Regular price
$46,943.29
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Lift overview
Built around your service bay.
The Challenger AR44018AR is an 18,000 lb capacity four-post alignment-rack package for medium-duty vehicles. It combines the 44018AR alignment lift with two RJ9A 9,000 lb air/hydraulic rolling jacks, stainless-steel turn plates and an internal air-line kit.
Built for your workflow
- Vehicle alignment
- General service with the selected alignment package
Plan your bay
- Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
- Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
- The manufacturer manual requires a reinforced concrete floor at least 4 in. thick with a minimum compressive strength of 3,000 psi. The standard power unit is 208/230 V, 60 Hz, single phase and requires a dedicated circuit; installation must be completed in accordance with the manual and local requirements. The current manufacturer documents do not publish an exact packaged shipping weight for AR44018AR, so freight weight is confirmed at quote.
Selected modelAR44018AR
Model AR44018AR
Selected configuration
- Model
- AR44018AR
- Package
- 44018AR alignment rack, two RJ9A rolling jacks, stainless-steel turn plates and internal air-line kit
Manufacturer specifications · selected model
- Lifting Capacity
- 18,000 lbs.
- Max Wheelbase
- 236”
- Rise Height
- 83.375”
- Overall Length
- 311.5”
- Overall Width
- 141.5”
- Inside Columns
- 122”
- Between Columns
- 204”
- Height Overall
- 102.5”
- Height of Runways
- 11.875”
- Width of Runways
- 22”
- Width Between Runways
- 36" - 54"
- Min - Max 4 Wheel Align
- 98” - 206”
- Max 2 Wheel Alignment
- 220”
- Motor / Voltage
- 3HP, 208 - 230v Single Phase*
- Amps
- 30
- Speed of Rise
- 60 s
- Colors Available
- Black
Family specifications & equipment
- Capacity
- 18,000 lb lifting capacity
- Dimensions & reach
- Maximum wheelbase: 236 in.; 4-wheel alignment range: 98–206 in.
- Design & equipment
- Maximum 2-wheel alignment: 220 in.
- Dimensions & reach
- Overall length: 311.5 in.; overall width: 141.5 in.
- Dimensions & reach
- 83.375 in. rise; 22 in. runways with 36–54 in. adjustable spacing
- Power & controls
- 3 HP, 208–230 V single-phase power unit; 30 A
- Dimensions & reach
- Approximate rise time: 60 seconds
- Dimensions & reach
- Single-point air-actuated lock release and 17 alignment heights
Manuals & specifications
Installation, operation & maintenance manual Download spec sheet Manufacturer product page Installation, operation and maintenance manual Heavy-duty four-post specification brochureUse the manual for the selected control package and model revision.
Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
Find the right configuration.
Compare column height, controls and equipment packages. Your selected model stays connected to the quote button above.
Selected model
AR44018AR
- Package
- 44018AR alignment rack, two RJ9A rolling jacks, stainless-steel turn plates and internal air-line kit
Configuration includes
Verify the final package and any additional adapters for your vehicle application.
Design & equipment
Adjustable runway spacing.
Design & equipment
Diamond-plate approach ramps.
Design & equipment
Alignment configuration with air-operated lock release.
Design & equipment
18,000 lb lifting capacity
Design & equipment
Maximum wheelbase: 236 in.; 4-wheel alignment range: 98–206 in.
Design & equipment
Maximum 2-wheel alignment: 220 in.
Design & equipment
Overall length: 311.5 in.; overall width: 141.5 in.
Design & equipment
83.375 in. rise; 22 in. runways with 36–54 in. adjustable spacing
Design & equipment
3 HP, 208–230 V single-phase power unit; 30 A
Design & equipment
Approximate rise time: 60 seconds
Design & equipment
Single-point air-actuated lock release and 17 alignment heights
Installation & service
Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
Installation & service
Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
Installation & service
The manufacturer manual requires a reinforced concrete floor at least 4 in. thick with a minimum compressive strength of 3,000 psi. The standard power unit is 208/230 V, 60 Hz, single phase and requires a dedicated circuit; installation must be completed in accordance with the manual and local requirements. The current manufacturer documents do not publish an exact packaged shipping weight for AR44018AR, so freight weight is confirmed at quote.
Warranty
Confirm the manufacturer’s written warranty for the supplied model and installation with your quote.
Shipping & lead time
Freight, availability, lead time and unloading requirements are confirmed with your quote.
