At a glance
- Rated capacity
- 15,000 lb lifting capacity; 78 in. rise height
- Lift design
- Alignment Lift
- Configurations
- 8 available

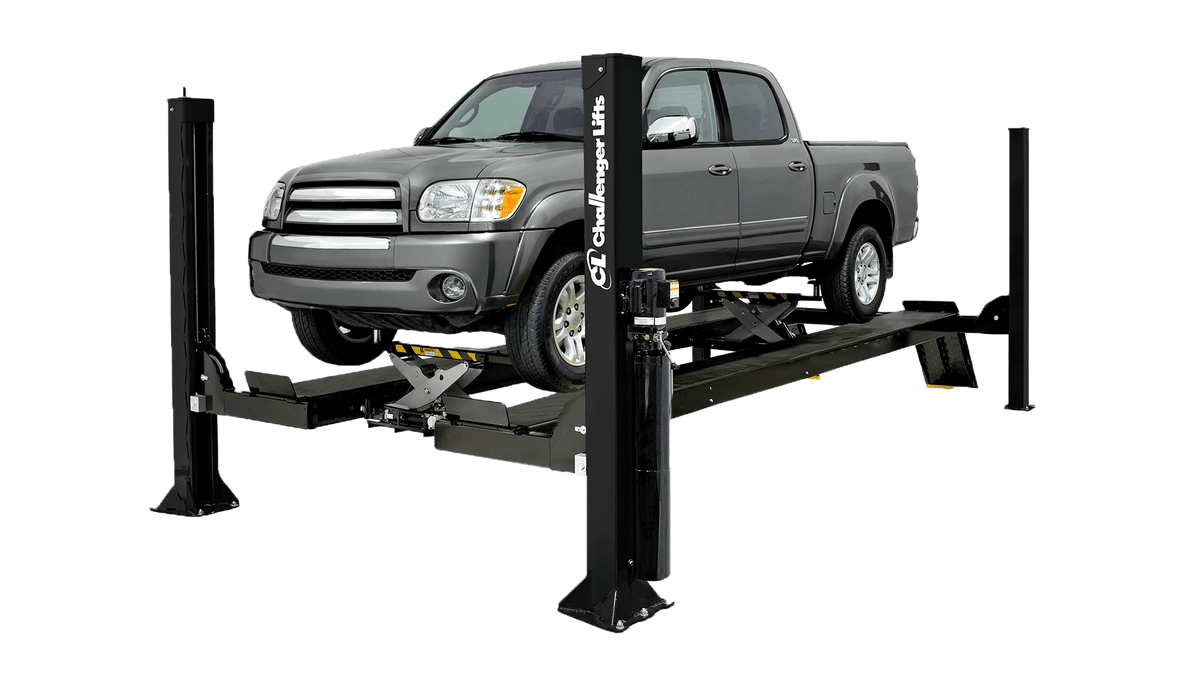

Challenger AR4115 Series 15,000 lb Alignment Lift
Built for
Professional Service Facilities
Support
Installation Available
Coverage
Nationwide
Regular price
$32,561.49
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Lift overview
Built around your service bay.
The Challenger AR4115 Series is a 15,000 lb capacity four-post alignment lift offered in open- and closed-front configurations with standard- and extended-length decks. The alignment packages include two RJ7.5 rolling jacks, an internal air line kit, stainless-steel turn plates, rear slip plates, turn-plate bridges and multi-position work steps.
Built for your workflow
- Vehicle alignment
- General service with the selected alignment package
Plan your bay
- Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
- Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
- The current installation manual requires reinforced concrete at least 4 in. thick, rated 3,500 psi or greater and cured at least 28 days. Minimum recommended bay sizes are 14 x 24 ft for open-front standard-length models, 14 x 26 ft for open-front extended models, 12 x 24 ft for closed-front standard models and 12 x 26 ft for closed-front extended models. The manual publishes approximate base-lift shipping-weight ranges of 4,350–4,550 lb for open-front configurations and 4,000–4,150 lb for closed-front configurations; because these sellable SKUs are complete alignment packages with additional components, exact packaged freight weight is confirmed at quote.
Selected modelAR4115EAO-ER
Model AR4115EAO-ER
Selected configuration
- Model
- AR4115EAO-ER
- Front design
- Open front
- Deck length
- Standard
- Ramp package
- Extended ramps
Manufacturer specifications · selected model
- Lifting Capacity
- 15,000 lbs.
- Open or Closed Front
- Open
- Overall Length
- 250.5"
- Overall Width
- 142"
- Inside Columns
- Front: 120.75" Rear: 125.5"
- Between Columns
- 195"
- Height of Columns
- Front: 99.25" Rear: 98"
- Height of Runways
- 7"
- Width of Runways
- 26"
- Width Between Runways
- 40.625"
- Max. Wheelbase
- 183"
- Rise Height
- 78"
- Max. 2 Wheel Alignment
- 167.75"
- Max. 4 Wheel Alignment
- 68" - 158"
- Air Supply Required
- 90-120 psi
- Motor / Voltage
- 2HP, 208v-230v, 60Hz, 1Ph
- Rise Time
- 85 s
- Min. Recomm. Bay Size
- 14' x 24'
- ALI/ETL Certified
- Yes
- Color Available
- Black
- Galvanized Upgrade
- Part # HDGUPGRADE
Family specifications & equipment
- Capacity
- 15,000 lb lifting capacity; 78 in. rise height
- Design & equipment
- 26.375 in. runways; 40.625 in. between runways
- Design & equipment
- 4-wheel alignment range: 68–158 in.
- Dimensions & reach
- Maximum 2-wheel alignment: 167.75 in. standard length or 195.25 in. extended length
- Dimensions & reach
- Maximum wheelbase: 183 in. standard length or 210.5 in. extended length
- Power & controls
- 3 HP, 208–230 V, 60 Hz single-phase standard power unit
- Dimensions & reach
- 90–120 psi clean, dry air supply; approximate rise time: 85 seconds
- Design & equipment
- 17 locking positions; ALI/ETL certified
Manuals & specifications
Installation, operation & maintenance manual Download spec sheet Manufacturer product page Installation, operation and maintenance manual Specification sheetUse the manual for the selected control package and model revision.
Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
Find the right configuration.
Compare column height, controls and equipment packages. Your selected model stays connected to the quote button above.
Selected model
AR4115EAO-ER
- Front design
- Open front
- Deck length
- Standard
- Ramp package
- Extended ramps
Configuration includes
Verify the final package and any additional adapters for your vehicle application.
Design & equipment
Wide drive-on runways.
Design & equipment
Multiple locking heights.
Design & equipment
Alignment-equipped configurations.
Design & equipment
15,000 lb lifting capacity; 78 in. rise height
Design & equipment
26.375 in. runways; 40.625 in. between runways
Design & equipment
4-wheel alignment range: 68–158 in.
Design & equipment
Maximum 2-wheel alignment: 167.75 in. standard length or 195.25 in. extended length
Design & equipment
Maximum wheelbase: 183 in. standard length or 210.5 in. extended length
Design & equipment
3 HP, 208–230 V, 60 Hz single-phase standard power unit
Design & equipment
90–120 psi clean, dry air supply; approximate rise time: 85 seconds
Design & equipment
17 locking positions; ALI/ETL certified
Installation & service
Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
Installation & service
Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
Installation & service
The current installation manual requires reinforced concrete at least 4 in. thick, rated 3,500 psi or greater and cured at least 28 days. Minimum recommended bay sizes are 14 x 24 ft for open-front standard-length models, 14 x 26 ft for open-front extended models, 12 x 24 ft for closed-front standard models and 12 x 26 ft for closed-front extended models. The manual publishes approximate base-lift shipping-weight ranges of 4,350–4,550 lb for open-front configurations and 4,000–4,150 lb for closed-front configurations; because these sellable SKUs are complete alignment packages with additional components, exact packaged freight weight is confirmed at quote.
Warranty
Confirm the manufacturer’s written warranty for the supplied model and installation with your quote.
Shipping & lead time
Freight, availability, lead time and unloading requirements are confirmed with your quote.
