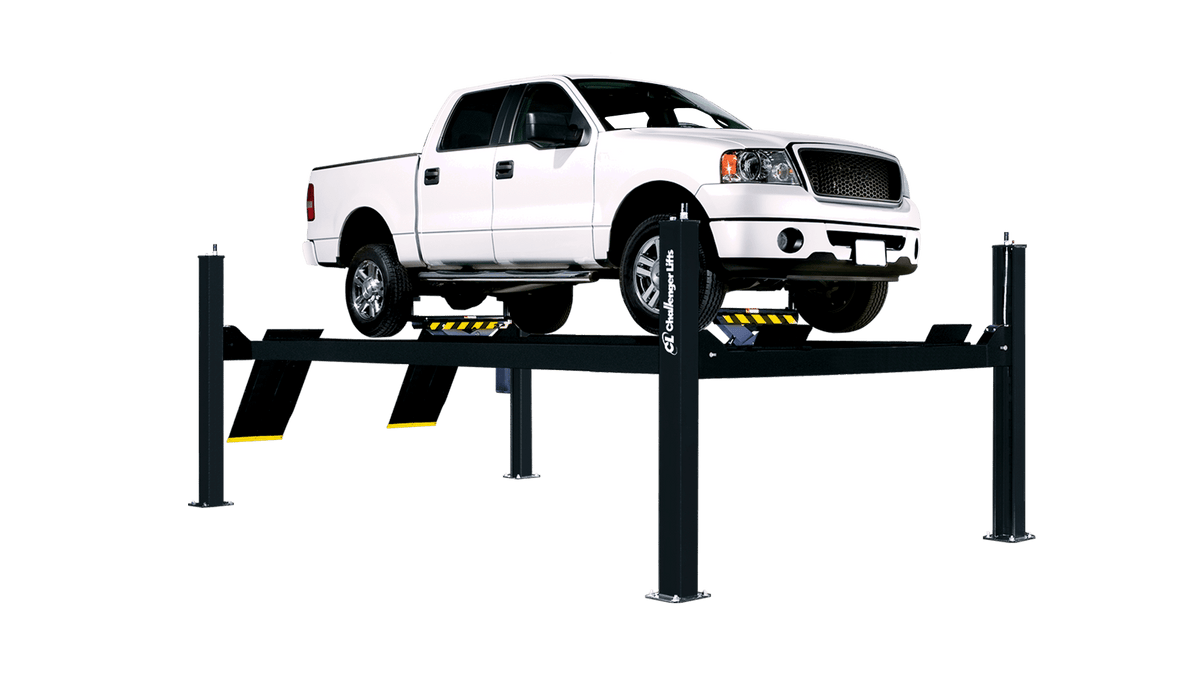

Challenger 4P14 14,000 lb four-post vehicle lift

Challenger 4P14 Series 14,000 lb Four-Post Lift

SKU: 4P14EFX Category: Vehicle Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$10,392.63
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger 4P14 Series is a 14,000 lb closed-front, drive-on four-post lift for general service work, with optional alignment capability. Wide 20-inch runways, louvered approach ramps, and two available lengths support a broad range of vehicles.

Built for your workflow

  • Automotive service
  • Confirm vehicle lifting points, load distribution and fit.

Plan your bay

  • Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
  • Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
  • Vertical clearance: 78 in. plus vehicle height
Installation details
Selected model4P14EFX

Model 4P14EFX

Selected configuration

Model
4P14EFX
Configuration
Closed-front four-post lift with louvered approach ramps and 20 in. runways; 245.75 in. overall length

Manufacturer specifications · selected model

Lifting Capacity
14,000 lbs.
Open or Closed Front
Closed
Max. Wheelbase
182.5”
Rise Height
78”
Overall Length
245.75”
Overall Width
130.75”
Inside Columns
116”
Between Columns
196”
Height of Columns
90.5”
Width of Runways
20”
Height of Runways
7.25”
Width Between Runways
40” / 43”
Air Supply Required
90-120 psi
Motor / Voltage
2HP, 208v-230v, 60Hz, 1Ph
Speed or Rise
90 s
Min. Recomm. Bay Size
12’ x 24’
ALI/ETL Certified
Yes
Color Available
Black

Manufacturer specifications · confirm selected package

Lifting capacity
14,000 lb
Overall length
245.75 in.
Overall width
130.75 in.
Inside columns
116 in.
Between columns
196 in.
Maximum wheelbase
182.5 in.
Column height
90.5 in.
Runway width / height
20 in. / 7.25 in.
Width between runways
40 or 43 in.
Rise height / approximate rise time
78 in. / 75 sec.
Motor / electrical
2 HP; 208–230V, 1-phase
Air supply
90–120 psi

Family specifications & equipment

Capacity
14,000 lb lifting capacity
Design & equipment
Closed-front design
Dimensions & reach
78-inch rise with 14 locking positions
Design & equipment
20-inch-wide runways and louvered approach ramps
Design & equipment
ALI/ETL certified
Design & equipment
Black powder-coat finish

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet 4P14 specification sheet 4P14 installation, operation and maintenance manual Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
