At a glance
- Rated capacity
- 60,000 lb lifting capacity; 73 in. rise height
- Lift design
- Heavy-Duty Four-Post Lift
- Configurations
- 3 available

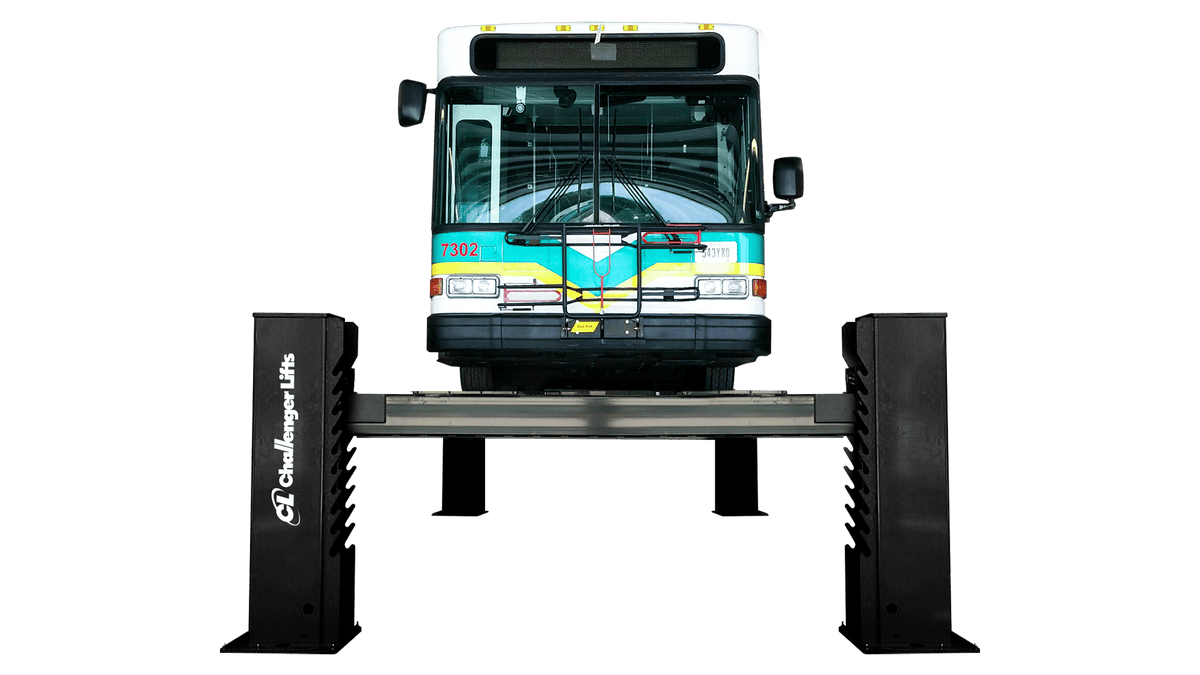

Challenger 44060 Series 60,000 lb Heavy-Duty Four-Post Lift
Built for
Professional Service Facilities
Support
Installation Available
Coverage
Nationwide
Regular price
$123,232.73
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Lift overview
Built around your service bay.
The Challenger 44060 Series is a 60,000 lb capacity heavy-duty, chain-driven four-post lift for commercial trucks, transit vehicles, construction equipment, and other high-capacity fleet service. Dual hydraulic cylinders and the synchro-power control system allow variable or synchronized front and rear operation.
Built for your workflow
- Fleet and commercial vehicle service
- Confirm the selected model’s wheelbase, dimensions and capacity.
Plan your bay
- Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
- Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
- The model-specific installation manual requires reinforced concrete at least 5 in. thick with a minimum 3,000 psi compressive strength. Minimum recommended bay sizes are 26 ft 1 in. x 42 ft 4 in. for the 25 ft track, 26 ft 1 in. x 47 ft 4 in. for the 30 ft track, and 26 ft 1 in. x 52 ft 4 in. for the 35 ft track. Sixteen feet is the minimum recommended ceiling height; vehicle height may require more. Installation must follow the current manual and local engineering/code requirements.
Selected model44060
Model 44060
Selected configuration
- Model
- 44060
- Track length
- 25 ft
- Max. wheelbase
- 310 in.
- Overall length
- 36 ft
Manufacturer specifications · selected model
- Lifting Capacity
- 60,000 lbs.
- Max Wheelbase
- 310”
- Rise Height
- 73”
- Overall Length
- 36'
- Overall Width
- 17’ 1.25”
- Inside Columns
- 144”
- Between Columns
- 290”
- Height Overall
- 92”
- Height of Runways
- 14”
- Width of Runways
- 32”
- Width Between Runways
- 36” - 58”
- Width Between Runways with jacks
- 43" - 53.5"
- Motor / Voltage
- 15HP, 230v Three Phase
- Amps
- 42 - 21
- Speed of Rise
- 70 s
- Colors Available
- Black
Family specifications & equipment
- Capacity
- 60,000 lb lifting capacity; 73 in. rise height
- Design & equipment
- 32 in. diamond-plate runways; adjustable 36–58 in. spacing
- Power & controls
- 15 HP, 230 V three-phase standard power unit
- Design & equipment
- 10 locking positions and pneumatic single-point lock release
- Design & equipment
- Fixed approach ramps and built-in runway rails for optional service accessories
- Design & equipment
- Black columns
Manuals & specifications
Installation, operation & maintenance manual Download spec sheet Manufacturer product page Installation, operation and maintenance manual Specification sheetUse the manual for the selected control package and model revision.
Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
Find the right configuration.
Compare column height, controls and equipment packages. Your selected model stays connected to the quote button above.
Selected model
44060
- Track length
- 25 ft
- Max. wheelbase
- 310 in.
- Overall length
- 36 ft
Configuration includes
Verify the final package and any additional adapters for your vehicle application.
Design & equipment
Chain-driven lifting system.
Design & equipment
Synchronized hydraulic cylinders.
Design & equipment
Diamond-plate approach ramps.
Design & equipment
60,000 lb lifting capacity; 73 in. rise height
Design & equipment
32 in. diamond-plate runways; adjustable 36–58 in. spacing
Design & equipment
15 HP, 230 V three-phase standard power unit
Design & equipment
10 locking positions and pneumatic single-point lock release
Design & equipment
Fixed approach ramps and built-in runway rails for optional service accessories
Design & equipment
Black columns
Installation & service
Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
Installation & service
Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
Installation & service
The model-specific installation manual requires reinforced concrete at least 5 in. thick with a minimum 3,000 psi compressive strength. Minimum recommended bay sizes are 26 ft 1 in. x 42 ft 4 in. for the 25 ft track, 26 ft 1 in. x 47 ft 4 in. for the 30 ft track, and 26 ft 1 in. x 52 ft 4 in. for the 35 ft track. Sixteen feet is the minimum recommended ceiling height; vehicle height may require more. Installation must follow the current manual and local engineering/code requirements.
Warranty
Confirm the manufacturer’s written warranty for the supplied model and installation with your quote.
Shipping & lead time
Freight, availability, lead time and unloading requirements are confirmed with your quote.
