At a glance
- Rated capacity
- 15,000 lb lifting capacity; 78 in. rise height
- Lift design
- Four-Post Lift
- Configurations
- 4 available

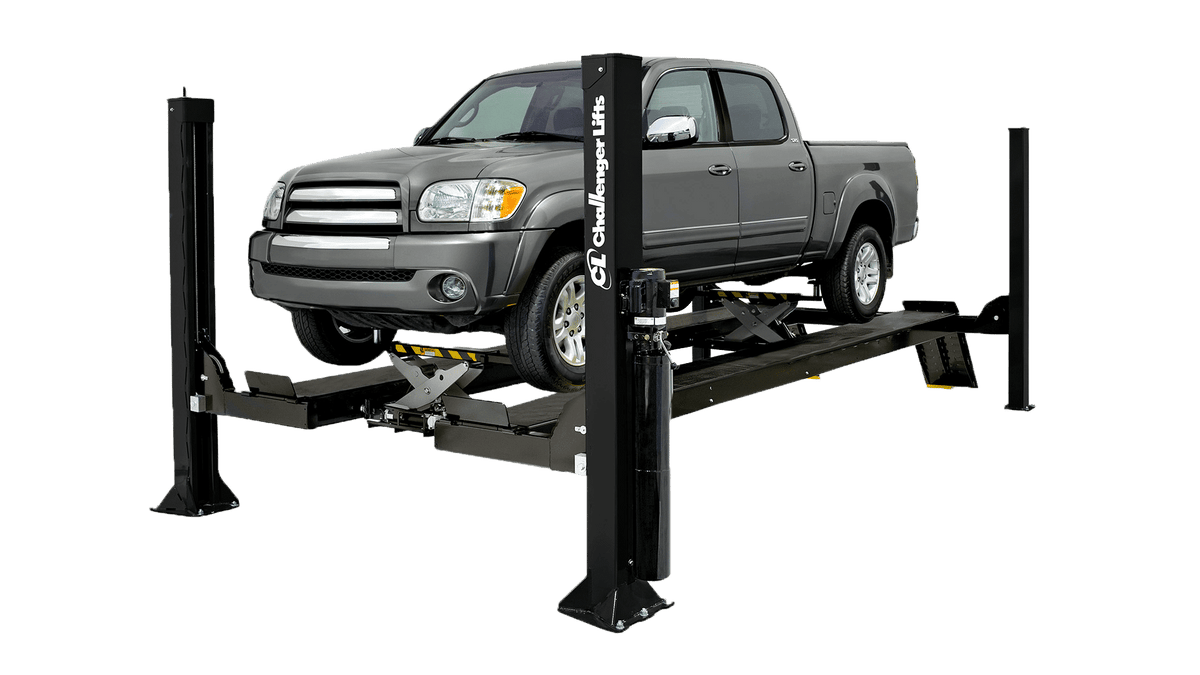

Challenger 4115 Series 15,000 lb Four-Post Lift
Built for
Professional Service Facilities
Support
Installation Available
Coverage
Nationwide
Regular price
$17,542.98
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Lift overview
Built around your service bay.
The Challenger 4115 Series is a 15,000 lb capacity four-post lift with 26 in. runways and a choice of open- or closed-front general-service flat decks. Standard and extended-length configurations support passenger vehicles, medium-duty trucks, and vans while preserving technician access around the vehicle.
Built for your workflow
- Automotive service
- Confirm vehicle lifting points, load distribution and fit.
Plan your bay
- Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
- Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
- The current installation manual requires reinforced concrete at least 4 in. thick, rated 3,500 psi or greater and cured at least 28 days. Minimum recommended bay sizes are 14 x 24 ft for standard-length models and 14 x 26 ft for extended-length models. The manufacturer lists approximate shipping-weight ranges—not exact SKU weights—of 4,350–4,550 lb for open-front configurations and 4,000–4,150 lb for closed-front configurations. Exact freight weight is confirmed at quote.
Selected model4115EFO
Model 4115EFO
Selected configuration
- Model
- 4115EFO
- Front design
- Open front
- Max. wheelbase
- 183 in.
- Overall length
- 250.75 in.
Manufacturer specifications · selected model
- Lifting Capacity
- 15,000 lbs.
- Open or Closed Front
- Open
- Overall Length
- 250.75"
- Overall Width
- 142"
- Inside Columns
- Front: 120.75" Rear: 125.5"
- Between Columns
- 195"
- Height of Columns
- Front: 99.25" Rear: 98"
- Height of Runways
- 7"
- Width of Runways
- 26"
- Width Between Runways
- 40.625"
- Max. Wheelbase
- 183"
- Rise Height
- 78"
- Max. 2 Wheel Alignment
- -
- Max. 4 Wheel Alignment
- -
- Air Supply Required
- 90-120 psi
- Motor / Voltage
- 2HP, 208v-230v, 60Hz, 1Ph
- Rise Time
- 85 s
- Min. Recomm. Bay Size
- 14' x 24'
- ALI/ETL Certified
- Yes
- Color Available
- Black
- Galvanized Upgrade
- NA
Family specifications & equipment
- Capacity
- 15,000 lb lifting capacity; 78 in. rise height
- Design & equipment
- 26.375 in. runways; 40.625 in. between runways
- Power & controls
- 3 HP, 208–230 V, 60 Hz single-phase standard power unit
- Design & equipment
- 90–120 psi clean, dry air supply
- Dimensions & reach
- Approximate rise time: 85 seconds
- Design & equipment
- 17 locking positions; ALI/ETL certified
Manuals & specifications
Installation, operation & maintenance manual Download spec sheet Manufacturer product page Installation, operation and maintenance manual Specification sheetUse the manual for the selected control package and model revision.
Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
Find the right configuration.
Compare column height, controls and equipment packages. Your selected model stays connected to the quote button above.
Selected model
4115EFO
- Front design
- Open front
- Max. wheelbase
- 183 in.
- Overall length
- 250.75 in.
Configuration includes
Verify the final package and any additional adapters for your vehicle application.
Design & equipment
Wide drive-on runways.
Design & equipment
Multiple locking heights.
Design & equipment
Service and alignment configurations available.
Design & equipment
15,000 lb lifting capacity; 78 in. rise height
Design & equipment
26.375 in. runways; 40.625 in. between runways
Design & equipment
3 HP, 208–230 V, 60 Hz single-phase standard power unit
Design & equipment
90–120 psi clean, dry air supply
Design & equipment
Approximate rise time: 85 seconds
Design & equipment
17 locking positions; ALI/ETL certified
Installation & service
Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
Installation & service
Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
Installation & service
The current installation manual requires reinforced concrete at least 4 in. thick, rated 3,500 psi or greater and cured at least 28 days. Minimum recommended bay sizes are 14 x 24 ft for standard-length models and 14 x 26 ft for extended-length models. The manufacturer lists approximate shipping-weight ranges—not exact SKU weights—of 4,350–4,550 lb for open-front configurations and 4,000–4,150 lb for closed-front configurations. Exact freight weight is confirmed at quote.
Warranty
Confirm the manufacturer’s written warranty for the supplied model and installation with your quote.
Shipping & lead time
Freight, availability, lead time and unloading requirements are confirmed with your quote.
