At a glance
- Rated capacity
- 30,000 lb lifting capacity; 71.75 in. rise height
- Lift design
- Heavy-Duty Four-Post Lift
- Configurations
- 6 available

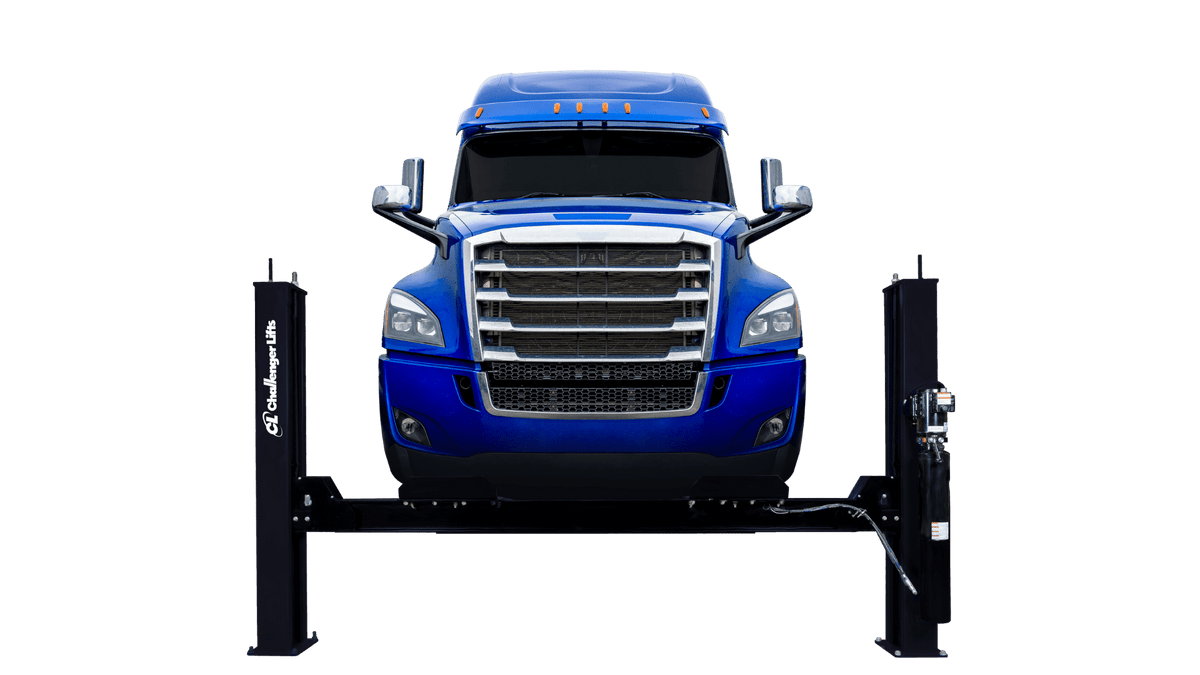

Challenger 4030 Series 30,000 lb Heavy-Duty Four-Post Lift
Built for
Professional Service Facilities
Support
Installation Available
Coverage
Nationwide
Regular price
$39,332.61
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Lift overview
Built around your service bay.
The Challenger 4030 Series is a 30,000 lb capacity, ALI/ETL-certified heavy-duty four-post lift available with flat-deck general-service or alignment runways in three lengths. Its cable-driven system, heavy-duty steel sheaves, pneumatic single-point lock release, adjustable lock ladders, and built-in jack rails are designed for commercial vehicle service.
Built for your workflow
- Fleet and commercial vehicle service
- Confirm the selected model’s wheelbase, dimensions and capacity.
Plan your bay
- Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
- Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
- The current installation manual requires reinforced concrete at least 4 in. thick, rated 3,500 psi or greater and cured at least 28 days. Minimum recommended bay sizes are 28 x 17 ft (short), 31 x 17 ft (standard), and 34 x 17 ft (extended). A dedicated electrical circuit, required clearances, and professional installation must be confirmed before ordering.
Selected model4030EAX
Model 4030EAX
Selected configuration
- Model
- 4030EAX
- Deck
- Alignment deck
- Max. wheelbase
- 281 in.
- Overall length
- 344 in.
Manufacturer specifications · selected model
- Lifting Capacity
- 30,000 lbs.
- Max. Wheelbase 1
- 281”
- Rise Height
- 71.75”
- Overall Length
- 344”
- Overall Width
- 172.75”
- Inside Columns
- 152”
- Between Columns
- 282.625”
- Height of Columns
- 92.25”
- Height of Runways
- 8.5”
- Width of Runways
- 24”
- Width Between Runways
- 46” - 52”
- Air Supply Required
- 90 - 120 psi
- Motor / Voltage (Single Phase Std)
- 3HP, 208v - 230v
- Speed of Rise
- TBD
- Max 2 Wheel Alignment
- 256”
- Min Recomm. Bay Size
- 31’ x 17’
- ALI/ETL Certified
- Yes
- Colors Available
- Black
Family specifications & equipment
- Capacity
- 30,000 lb lifting capacity; 71.75 in. rise height
- Design & equipment
- 24 in. runways; adjustable 46–52 in. spacing between runways
- Power & controls
- 3 HP, 230 V single-phase standard power unit
- Design & equipment
- 90–120 psi clean, dry, lubricated air supply
- Dimensions & reach
- Approximate rise time: 126 seconds
- Design & equipment
- Indoor installation only
Manuals & specifications
Installation, operation & maintenance manual Download spec sheet Manufacturer product page Installation, operation and maintenance manual Specification sheetUse the manual for the selected control package and model revision.
Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
Find the right configuration.
Compare column height, controls and equipment packages. Your selected model stays connected to the quote button above.
Selected model
4030EAX
- Deck
- Alignment deck
- Max. wheelbase
- 281 in.
- Overall length
- 344 in.
Configuration includes
Verify the final package and any additional adapters for your vehicle application.
Design & equipment
Cable-and-sheave lifting system.
Design & equipment
Air-operated lock release.
Design & equipment
Multiple runway lengths available.
Design & equipment
30,000 lb lifting capacity; 71.75 in. rise height
Design & equipment
24 in. runways; adjustable 46–52 in. spacing between runways
Design & equipment
3 HP, 230 V single-phase standard power unit
Design & equipment
90–120 psi clean, dry, lubricated air supply
Design & equipment
Approximate rise time: 126 seconds
Design & equipment
Indoor installation only
Installation & service
Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
Installation & service
Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
Installation & service
The current installation manual requires reinforced concrete at least 4 in. thick, rated 3,500 psi or greater and cured at least 28 days. Minimum recommended bay sizes are 28 x 17 ft (short), 31 x 17 ft (standard), and 34 x 17 ft (extended). A dedicated electrical circuit, required clearances, and professional installation must be confirmed before ordering.
Warranty
Confirm the manufacturer’s written warranty for the supplied model and installation with your quote.
Shipping & lead time
Freight, availability, lead time and unloading requirements are confirmed with your quote.
