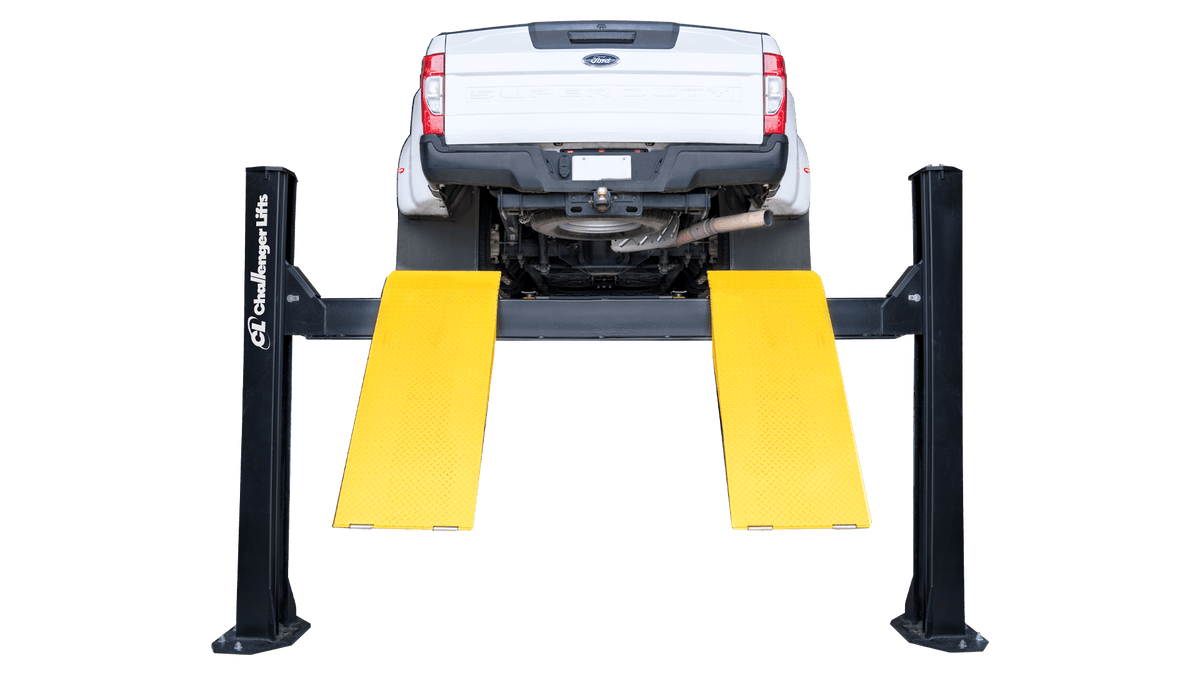

Challenger 4018XFX 18,000 lb heavy-duty four-post vehicle lift

Challenger 4018XFX Series 18,000 lb Four-Post Lift

SKU: 4018XFX Category: Vehicle Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$38,141.56
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

The Challenger 4018XFX is an ALI-certified, 18,000 lb heavy-duty four-post lift designed for fleet and commercial vehicle service. Its 24-inch-wide flat-deck runways, proven cable drive, and single-point mechanical lock release accommodate vehicles with wheelbases up to 220 inches.

Built for your workflow

  • Automotive service
  • Confirm vehicle lifting points, load distribution and fit.

Plan your bay

  • Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
  • Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
  • Recommended bay footprint: approximately 14 ft wide by 24 ft long, with adequate working clearance
Installation details
Selected model4018XFX

Model 4018XFX

Selected configuration

Model
4018XFX
Configuration
ALI-certified 18K cable-drive four-post general-service lift with 24 in. runways and single-point mechanical lock release

Manufacturer specifications · selected model

Lifting Capacity
18,000 lbs.
Max. Wheelbase
220"
Rise Height
72"
Overall Length
303.375"
Overall Width
152.125"
Inside Columns
128.8125"
Between Columns
229.125"
Overall Height
98.625"
Height of Runways
9.5"
Width of Runways
24"
Width Between Runways
40"
Standard Motor/Voltage
208-230v, 60hz, 1ph, 23a
Rise Time
70s
ALI® Certified
Yes
Available Color(s)
Black

Manufacturer specifications · confirm selected package

Lifting capacity
18,000 lb
Maximum wheelbase
220 in.
Overall length
303.375 in.
Overall width
152.125 in.
Inside columns
128.8125 in.
Between columns
229.125 in.
Overall height
98.625 in.
Runway width / lowered height
24 in. / 9.5 in.
Width between runways
40 in.
Rise height / approximate rise time
72 in. / 70 sec.
Ramp approach angle
10 degrees
Electrical
208–230V, 60Hz, single-phase; size circuit per current IOM manual and local code
Air supply
90–120 psi
Maximum operating pressure at full load
2,650 psi
Base-lift shipping weight
5,465 lb

Family specifications & equipment

Capacity
18,000 lb lifting capacity
Design & equipment
Closed-front, cable-driven four-post design
Design & equipment
24-inch-wide runways
Design & equipment
Single-point mechanical lock release
Dimensions & reach
72-inch rise with an approximately 70-second rise time
Design & equipment
ALI certified
Design & equipment
Black finish

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet 4018 specification sheet 4018 installation, operation and maintenance manual Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
