72" Severe Duty Series 2 Brush Cutter
72-inch severe-duty brush cutter with three piston-motor options, 10-inch cutting capacity, and quote-ready fitment guidance for serious skid steer clearing work.
Product Overview

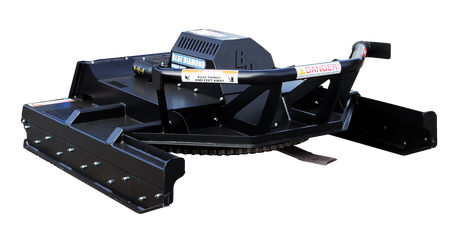

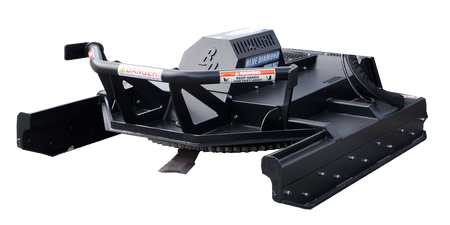

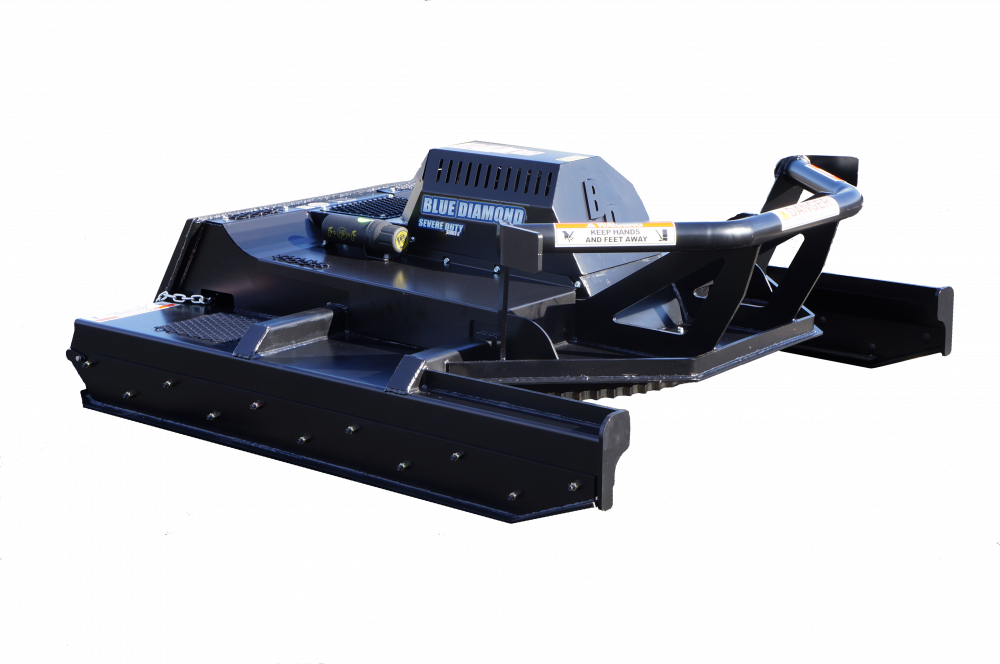

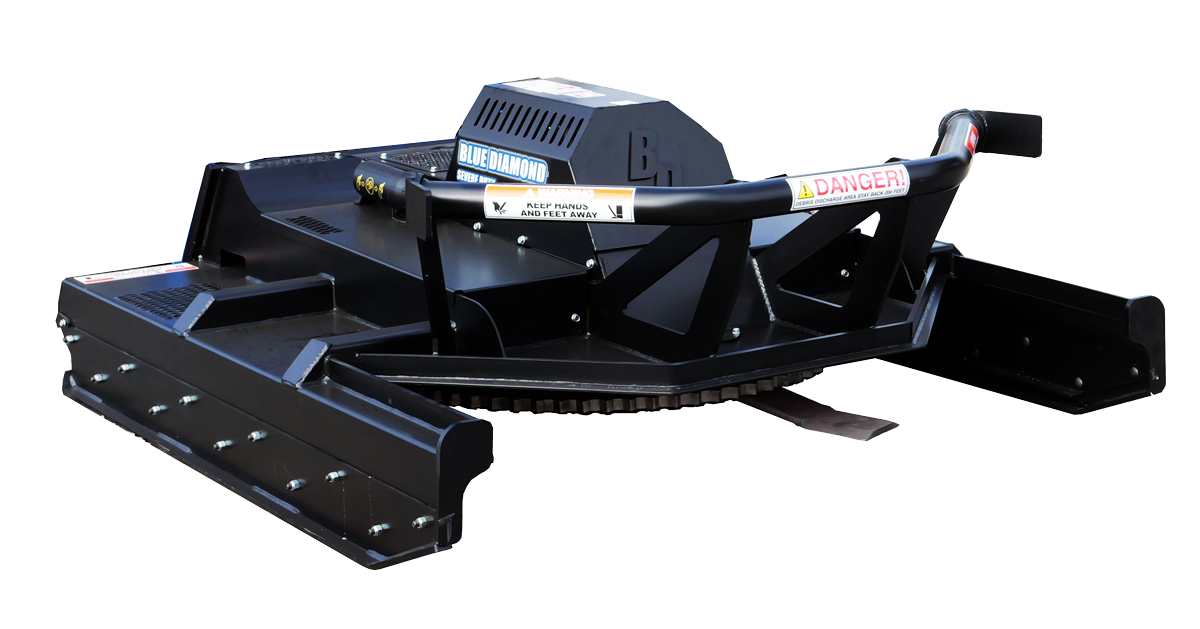

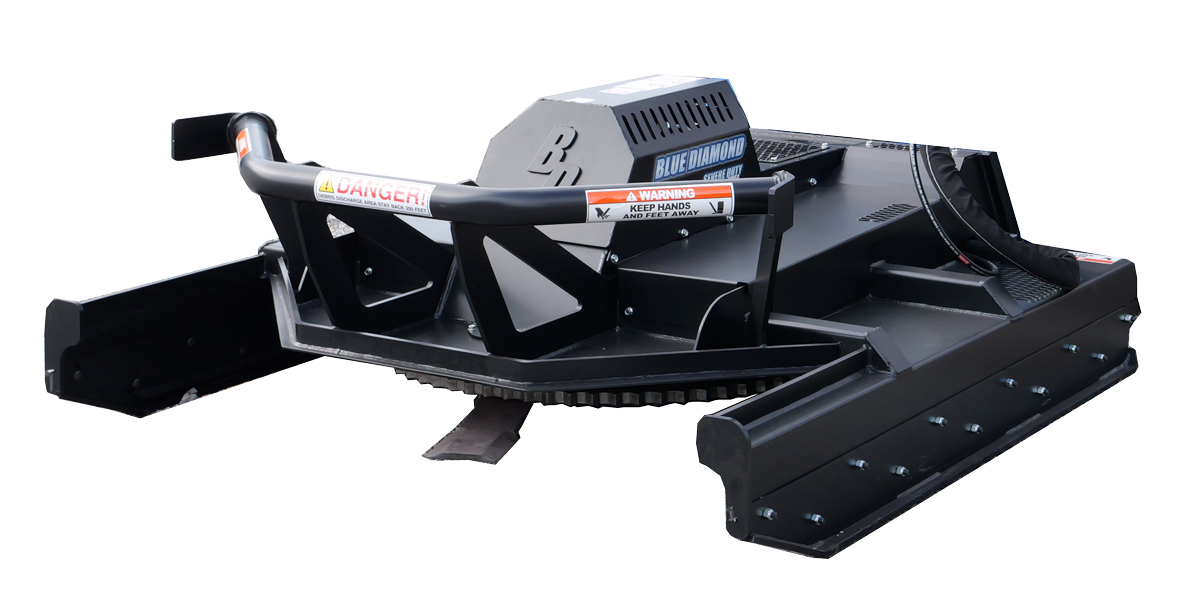

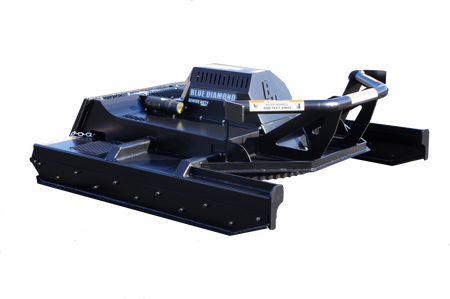

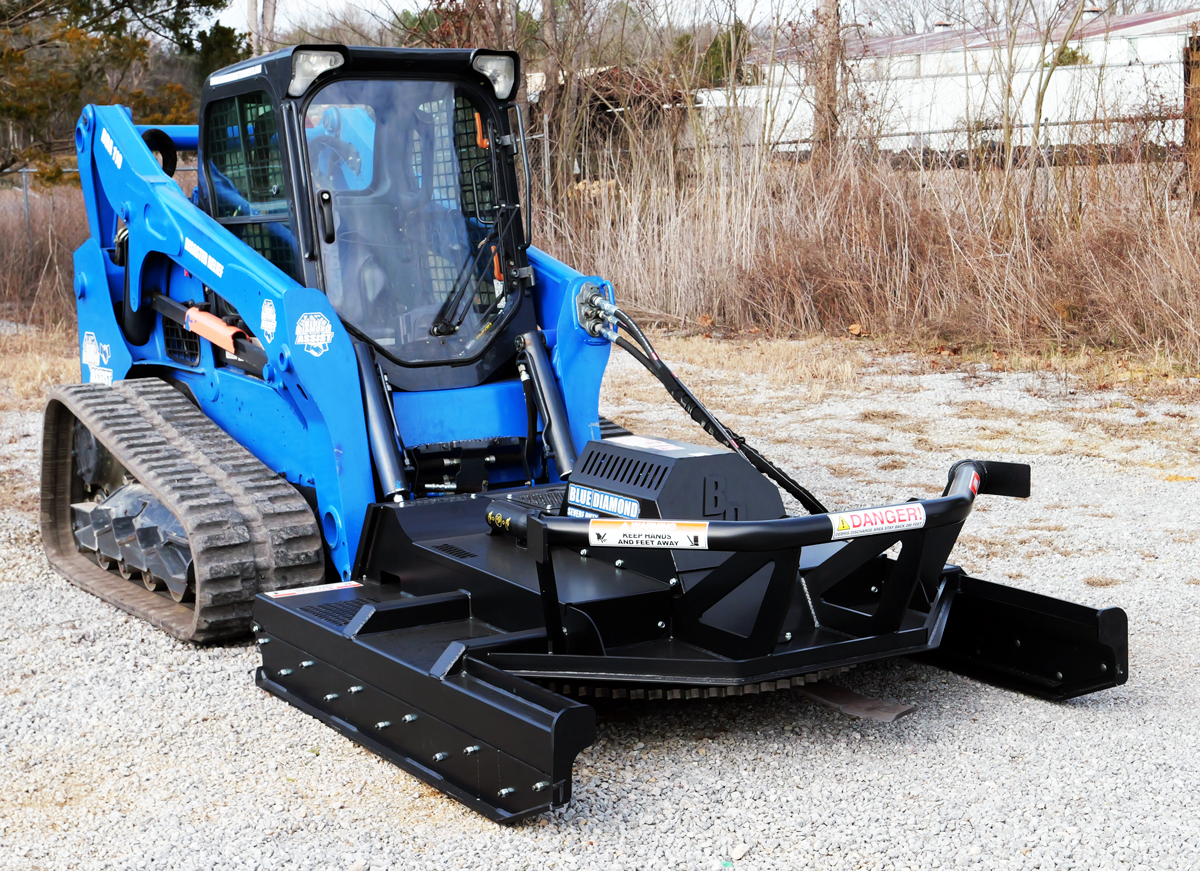

The Blue Diamond 72" Severe Duty Series 2 Brush Cutter is built for professional brush and tree clearing with a high-torque piston motor, a 1-inch thick serrated blade carrier, four double-sided blades, and debris-management features that support long working days in rough conditions.
Key Features
- 72-inch cutting width
- 10-inch maximum cutting capacity
- 150cc, 200cc, and 250cc piston motor options

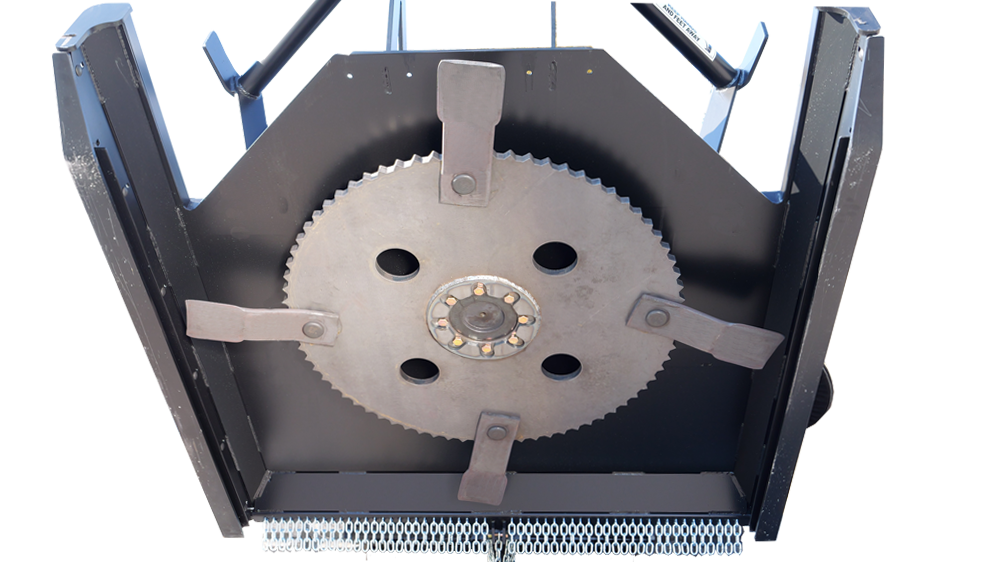

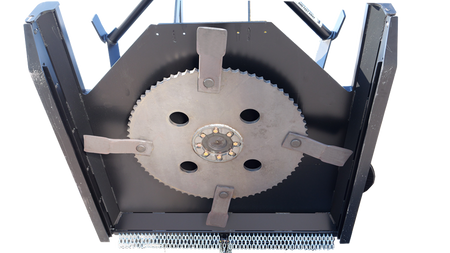

- 1-inch thick serrated blade carrier
- Four double-sided blades
- Visible pressure gauge to monitor workload
- Reinforced push bar
- Bolt-on skid shoes and no-slip tread
Motor Options
| Part No. | Motor | Flow Range | Cut Width | Weight |
|---|---|---|---|---|
| 103122 | 150cc | 16-26 GPM | 72 in. | 2,224 lbs |
| 103127 | 200cc | 27-35 GPM | 72 in. | 2,250 lbs |
| 103132 | 250cc | 35-45 GPM | 72 in. | 2,136 lbs |
Machine Compatibility
Source documents confirm skid steer application, 75 HP and larger carrier requirement, 2,700 lb required lift capacity, hydraulic flow matched to the selected motor, 4,000 PSI maximum operating pressure, and a required case drain connection. Mount and coupler requirements: Confirm before publishing.
Additional Specifications
| Drive System | Direct Drive |
| Minimum Cutting Height | 2 1/2 in. |
| Required Carrier Power | 75 HP and larger |
| Required Lift Capacity | 2,700 lbs |
| Maximum Relief Pressure | 4,000 PSI |
| Blade Configuration | Four double-sided blades |
Shipping & Lead Time
Ships by freight. Lead time and freight cost vary by configuration and destination, so Region Equipment should confirm timing at quote stage.
Warranty
Blue Diamond states that Severe Duty Series 1 and Series 2 Brush Cutters are covered for twelve months from delivery to the original purchaser when properly set up and operated under the published recommendations. Warranty registration is requested within 30 days of purchase.
Installation & Service
Before operation, match the selected motor to machine flow, connect the required case drain, inspect guards and mounting points, and follow the Blue Diamond operation and maintenance manual. Region Equipment can help confirm the right configuration before quote or delivery.
