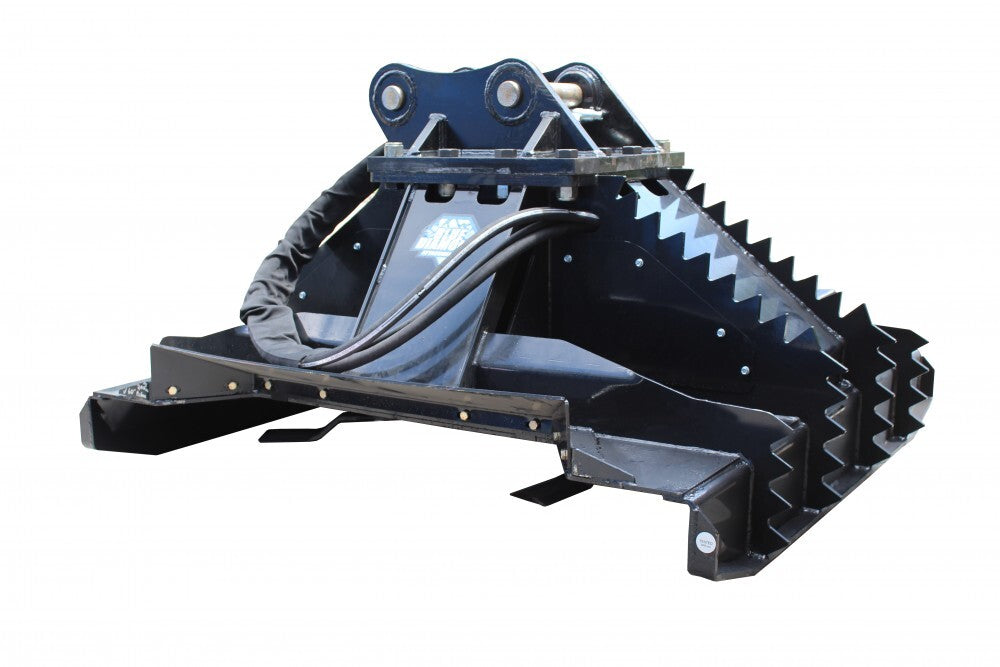

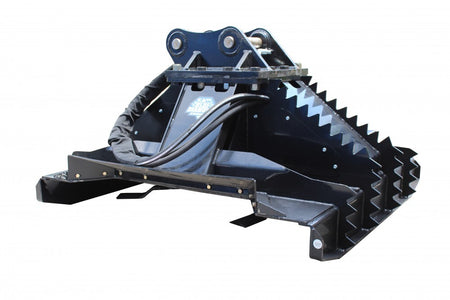

60" Extreme Duty Excavator Brush Cutter
A heavy-hitting excavator cutter built for serious clearing crews that need 60-inch coverage, high-torque direct-drive performance, and the authority to work through tougher material with confidence.
Product Overview

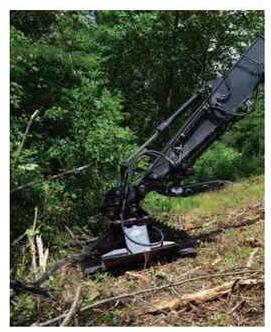

The Blue Diamond 60" Extreme Duty Excavator Brush Cutter is built for contractors who want an excavator-mounted cutter that can clear aggressively without giving up reach and machine control. A 150cc high-torque piston motor, heavy blade carrier, direct-drive design, and durable deck package make it a strong option for serious land clearing, site work, and vegetation management.
Key Features
- 60-inch cutting width
- Up to 6-inch cutting capacity
- 150cc high-torque piston motor
- Three double-edge AR400 blades
- 1-inch thick blade carrier
- Grease-filled direct drive
- Cutaway side for larger material access
Configuration
| Part No. | Model | Flow Range | Weight |
|---|---|---|---|
| 103850 | 60 in. Extreme Duty Excavator Brush Cutter / 150cc | 22-30 GPM | 1,200 lbs without mount |
Machine Compatibility
Designed for excavator applications in the 28,000-38,000 lb range. Final fitment should be confirmed against hydraulic flow, case drain setup, bracket interchange, and the carrier's ability to safely handle the attachment at working reach.
Additional Specifications
| Overall Height | 28.5 in. plus mount |
| Overall Length | 70.5 in. |
| Overall Width | 64 in. |
| Minimum Cutting Height | 2.5 in. |
| Maximum Relief Pressure | 3,200 PSI |
| Drive System | Direct drive |
Shipping & Lead Time
Ships by freight. Region Equipment can confirm availability, freight cost, and lead time when your quote is prepared.
Warranty
Backed by Blue Diamond's 12-month limited warranty for this product family.
Installation & Service
Before ordering, confirm case drain provision, hydraulic flow, and bracket setup so the cutter is matched correctly to the machine and the work.
