Swing Arm Brush Cutter
High-reach skid steer brush cutter for cutting banks, fence lines, pond edges, trails, and roadside overgrowth.
Product Overview

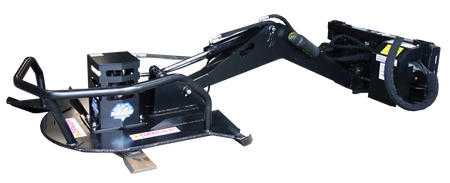

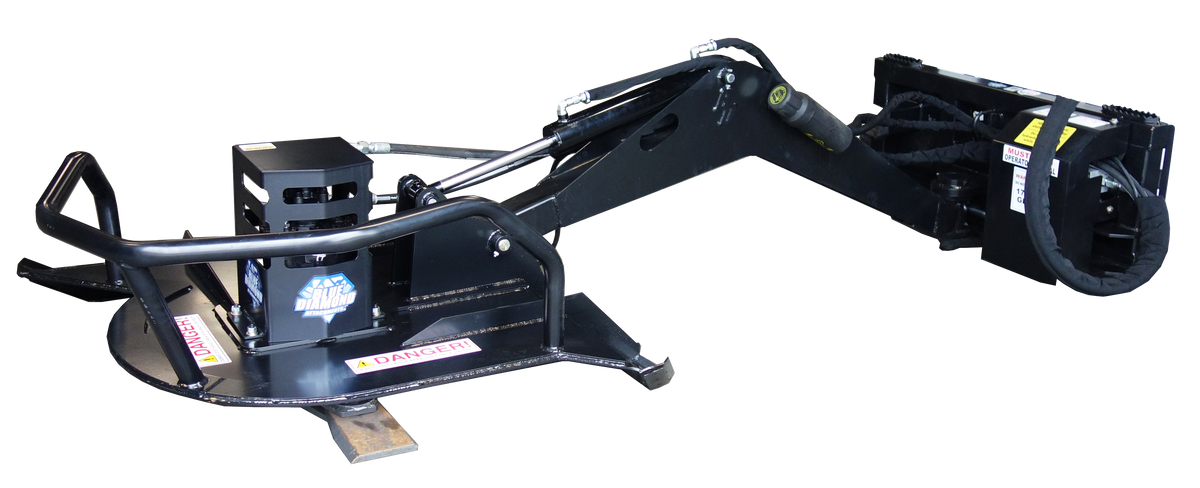

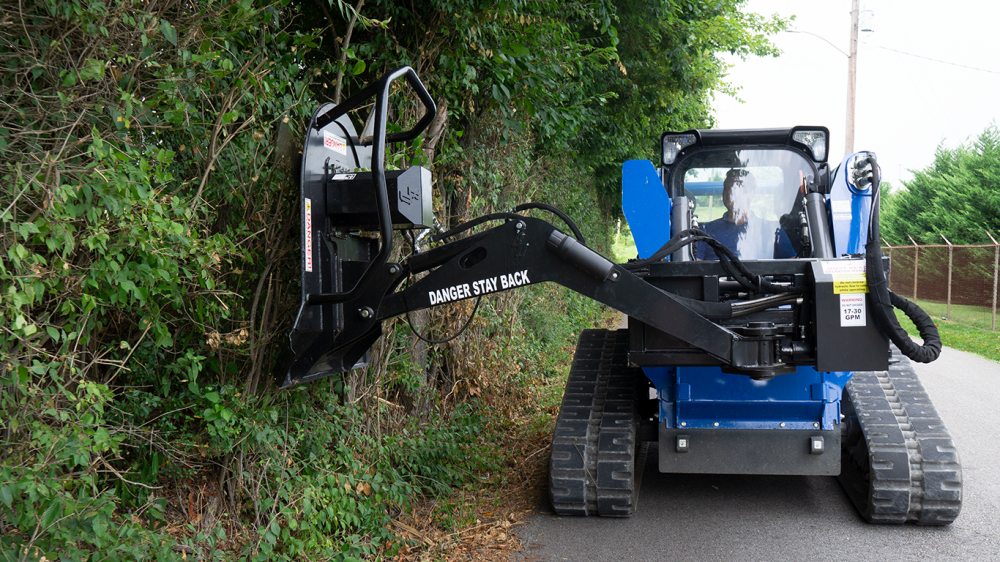

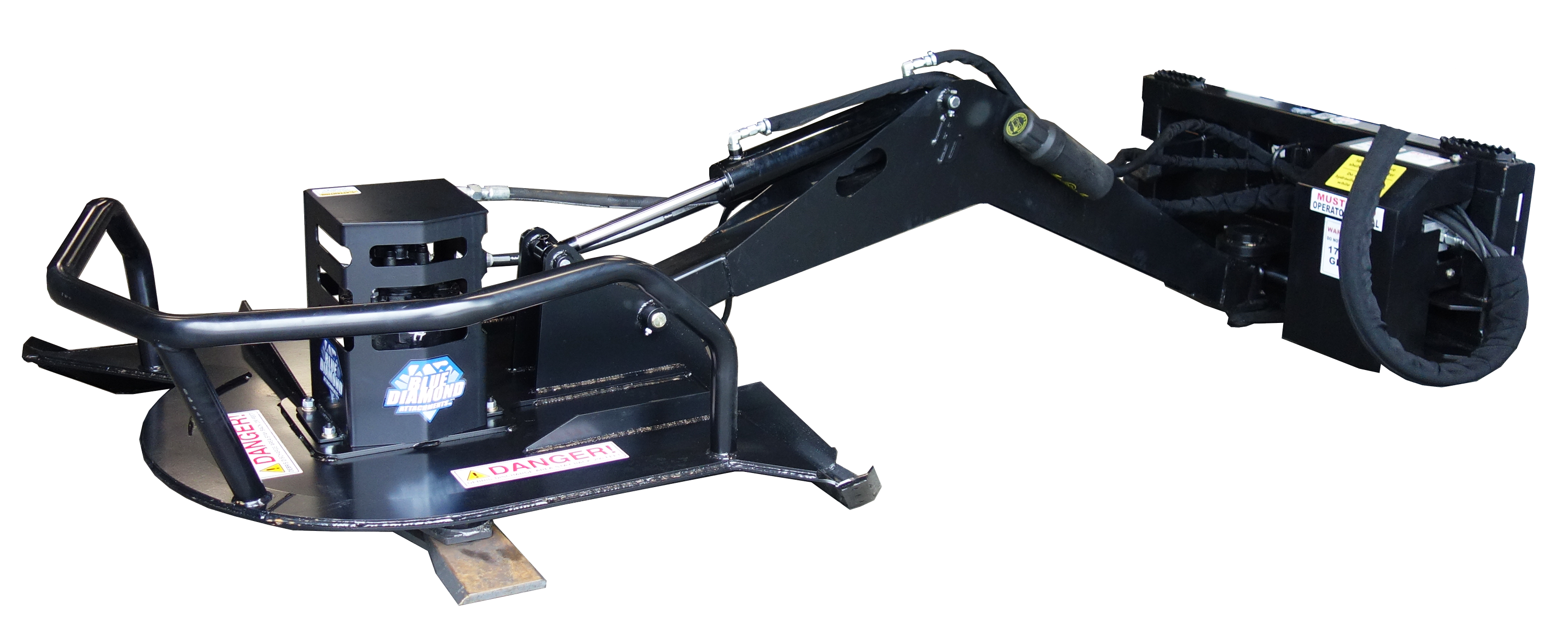

The Blue Diamond Swing Arm Brush Cutter is designed for skid steer operators who need reach beyond a typical front-mounted cutter. Manufacturer documentation positions it for cutting banks, rights-of-way, fence lines, pond edges, and trails where angled or side-cutting access matters. The cutter can also be used as a side cutter and gives a significant reach advantage over a typical brush cutter layout.
Key Features
- 44-inch cutting width
- 4-inch cutting capacity
- Up to 8 feet of horizontal reach and 16 feet of vertical reach
- Greaseable direct drive with high-torque hydraulic motor options
- 3 in. x 16 in. tilt cylinder on the swing arm
- Two double-sided AR400 blades on a 5/8 in. blade carrier
- Case drain required
- Optional universal, 8-pin, or 14-pin wiring harnesses available on the feature sheet
Best For
- Roadside and right-of-way cutting
- Fence line and pond bank maintenance
- Trail and access-lane clearing
- Property and vegetation management where side reach matters
Machine Compatibility
This attachment is intended for skid steers only. The manual states the swing arm cutter should be used on 70+ HP skid steers with at least 1,800 lbs of lift capacity and at least 6,500 lbs machine weight with the bucket removed. Blue Diamond also notes that tracked loaders provide superior stability compared with a non-tracked unit.
Motor / Flow Configurations
| Part No. | Motor | Flow Range | Weight |
|---|---|---|---|
| 103870 | Geroler | 14-20 GPM | 845 lbs |
| 103875 | Piston | 17-30 GPM | 1,203 lbs |
Additional Specifications
| Cutting Width | 44 in. |
| Cutting Capacity | 4 in. |
| Horizontal Reach | 8 ft |
| Vertical Reach | 16 ft |
| Max Pressure | 4,000 PSI |
| Blade Configuration | Two double-sided AR400 blades on a 5/8 in. blade carrier |
| Tilt Cylinder | 3 in. x 16 in. |
Shipping & Lead Time
This attachment ships freight. Region Equipment has confirmed Blue Diamond products should be treated as in stock, but freight timing and host-machine setup needs should still be confirmed before promising delivery timing.
Warranty & Support
Blue Diamond lists a 12-month limited warranty for the Swing Arm Brush Cutter. Warranty claims must be filed before repair work is performed, and dealer mileage, pickup, delivery, and service-call charges remain the customer's responsibility.
Installation & Service
Confirm case drain, hydraulic flow, electrical connector style, and machine stability before finalizing a quote. Region Equipment should review the existing harness variant structure because the draft combines base cutter pricing with optional harness pricing and not every variant currently has a standardized combined manufacturer SKU.
