42" Severe Duty Series 2 Excavator Brush Cutter
A compact severe-duty excavator cutter built for operators who need more bite, cleaner reach, and serious brush-cutting performance without moving into a much larger attachment class.
Product Overview

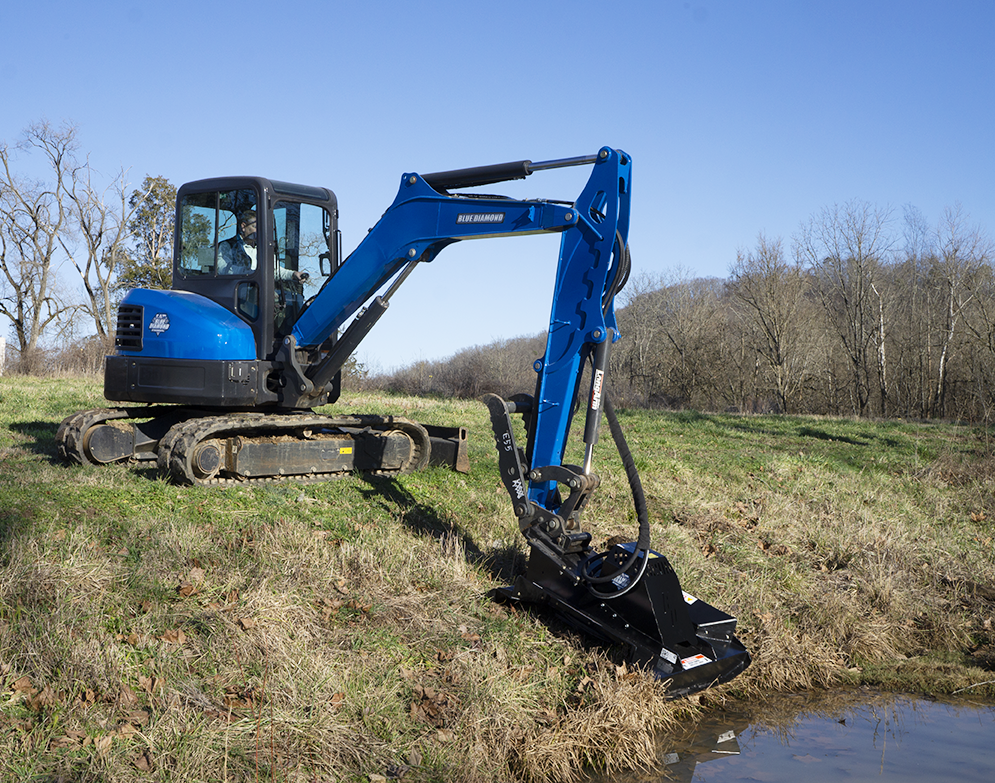

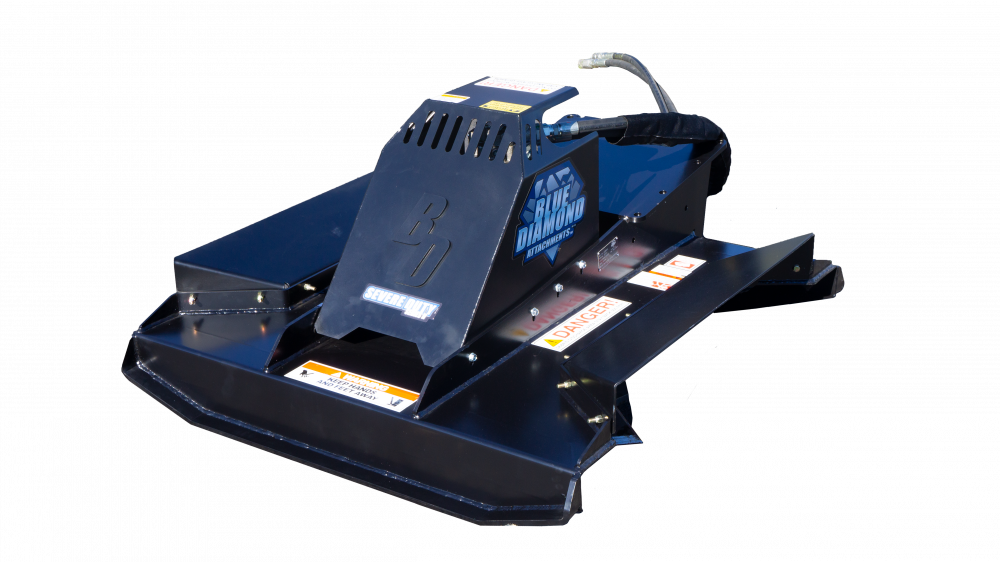

The Blue Diamond 42" Severe Duty Series 2 Excavator Brush Cutter is built for operators who want excavator-mounted cutting performance with the durability to stay productive in aggressive vegetation. Its oil-filled direct drive, heavy blade carrier, deck cutouts, and improved seal protection make it a strong fit for land clearing, ROW work, and site cleanup where a compact excavator cutter still needs to work hard.
Key Features
- 42-inch cutting width
- Up to 6-inch cutting capacity
- 80cc high-torque piston motor
- Oil-filled direct drive
- 3/4-inch blade carrier
- No case drain required
- Improved wire protection for the oil seal
Configuration
| Part No. | Model | Flow Range | Weight |
|---|---|---|---|
| 103820-2 | 42 in. Severe Duty Series 2 / 80cc | 16-26 GPM | 718 lbs attachment only |
Machine Compatibility
Designed for excavator applications within the listed carrier range and best matched by machine weight, hydraulic flow, and mount configuration. This cutter is intended for 10,000-19,000 lb machines, so final fitment should be confirmed against the exact carrier, coupler setup, and jobsite conditions.
Additional Specifications
| Overall Height | 23 in. |
| Overall Length | 50 in. |
| Overall Width | 46 in. |
| Minimum Cutting Height | 2.5 in. |
| Maximum Relief Pressure | 3,000 PSI |
Shipping & Lead Time
Ships by freight. Region Equipment can confirm current availability, freight cost, and lead time when your quote is prepared.
Warranty
Backed by Blue Diamond's 12-month limited warranty for this product family.
Installation & Service
Before ordering, confirm carrier weight, hydraulic flow, and bracket setup so the cutter is matched correctly to the machine and the work.
