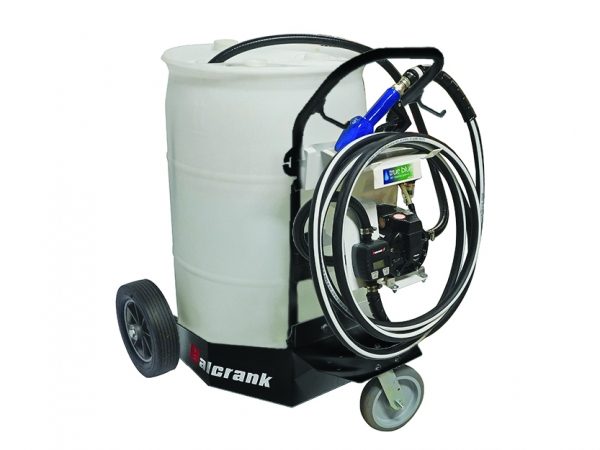

Balcrank CF Diaphragm Pump — manufacturer representative image; configuration and color vary by model

Balcrank 1210-056P — DEF Outfit/Portable/Cf/Auto - Portable

SKU: 1210-056P Category: Air & Lubrication Equipment
Built for Fluid Dispensing & Lubrication
Support System Selection & Installation
Coverage Nationwide
$3,202.00
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Air & lubrication equipment

Product details

Overview

Balcrank 1210-056P: DEF dispensing package for portable 55-gallon drum handling with Pneumatic CF15 drive, non-metered dispensing and a automatic nozzle.

  • Dedicated DEF dispensing configuration.
  • Automatic nozzle with non-metered delivery.
  • Cart supports drums up to 55 gallons.

Model & configuration

Model / SKU1210-056P

Your quote request will include this model and any options selected above.

Specifications

Performance

Configuration
Portable drum cart, up to 55 gal

Dimensions & construction

Pump
1120-025A CF15 DEF AODD pump
Drive
Pneumatic CF15
Metering
Non-metered
Nozzle
Automatic
Suction hose
6 ft × 3/4 inch
Discharge hose
12 ft × 3/4 inch

Manuals & documents

Download Spec Sheet

Included components

  • 1120-025A CF15 DEF AODD pump 8570-006 — suction hose
  • 6 ft × 3/4 inch 8561-012 — discharge hose
  • 12 ft × 3/4 inch 4530-054 — drip tray 4530-065 — side-mount bracket 4320-014 — 55-gallon DEF drum cart 3260-060 — mini filter/regulator with automatic drain Automatic DEF nozzle

Installation, warranty & support

Installation & Service
  • Use dedicated DEF-compatible components and protect the fluid path from contamination.
  • Confirm pump power, closed-system coupler, container connection, nozzle and meter against the exact package configuration.
