Overview

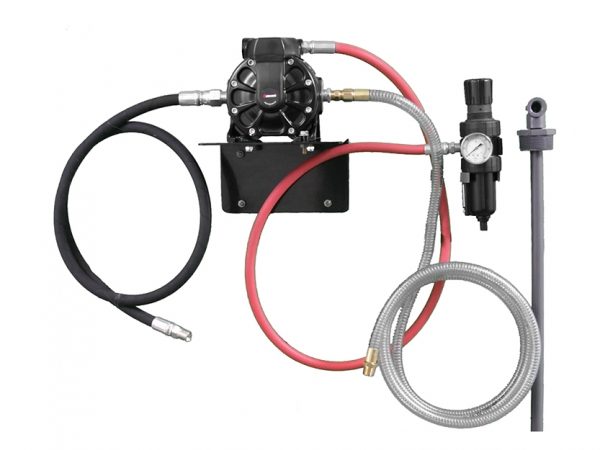

Balcrank 1121-028: CF15 wall mount pumping package for antifreeze (glycol).
- Wall mount package with CF15 diaphragm pump.
- Includes hose assemblies and air filter/regulator.
Balcrank 1121-028 — Outfit, Diaphragm, Wall Mount, 1/2" CF
Built for
Fluid Dispensing & Lubrication
Support
System Selection & Installation
Coverage
Nationwide
Regular price
$2,343.00
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Air & lubrication equipment
Product details
Model & configuration
Model / SKU1121-028
Your quote request will include this model and any options selected above.
Specifications
Performance
- Configuration
- Wall mount
Dimensions & construction
- Pump
- 1120-027 aluminum CF15
- Application
- Antifreeze (glycol)
Included components
- 1120-027 — aluminum CF15 pump 8134-005 — LP hose
- 5 ft × 3/8 inch 3260-035 — automatic-drain filter/regulator
- 3/8 inch NPT(F) 3120-201 — pressure-relief kit
- 1/2 inch NPT 8249-005 — MP hose
- 5 ft × 1/2 inch 4412-019 — PVC suction-tube kit
- 1/2 inch 4411-025 — AODD mounting bracket
Installation, warranty & support
Installation & Service
- Confirm fluid chemistry, viscosity, temperature, required delivery and the exact pump materials and ratio.
- Size the drive-air supply separately from fluid-side pressure. Verify relief protection, suction connections and rated downstream components.
- Confirm all included pump, cover, follower, hose, valve and cart items; a named outfit may exclude its fluid container.
