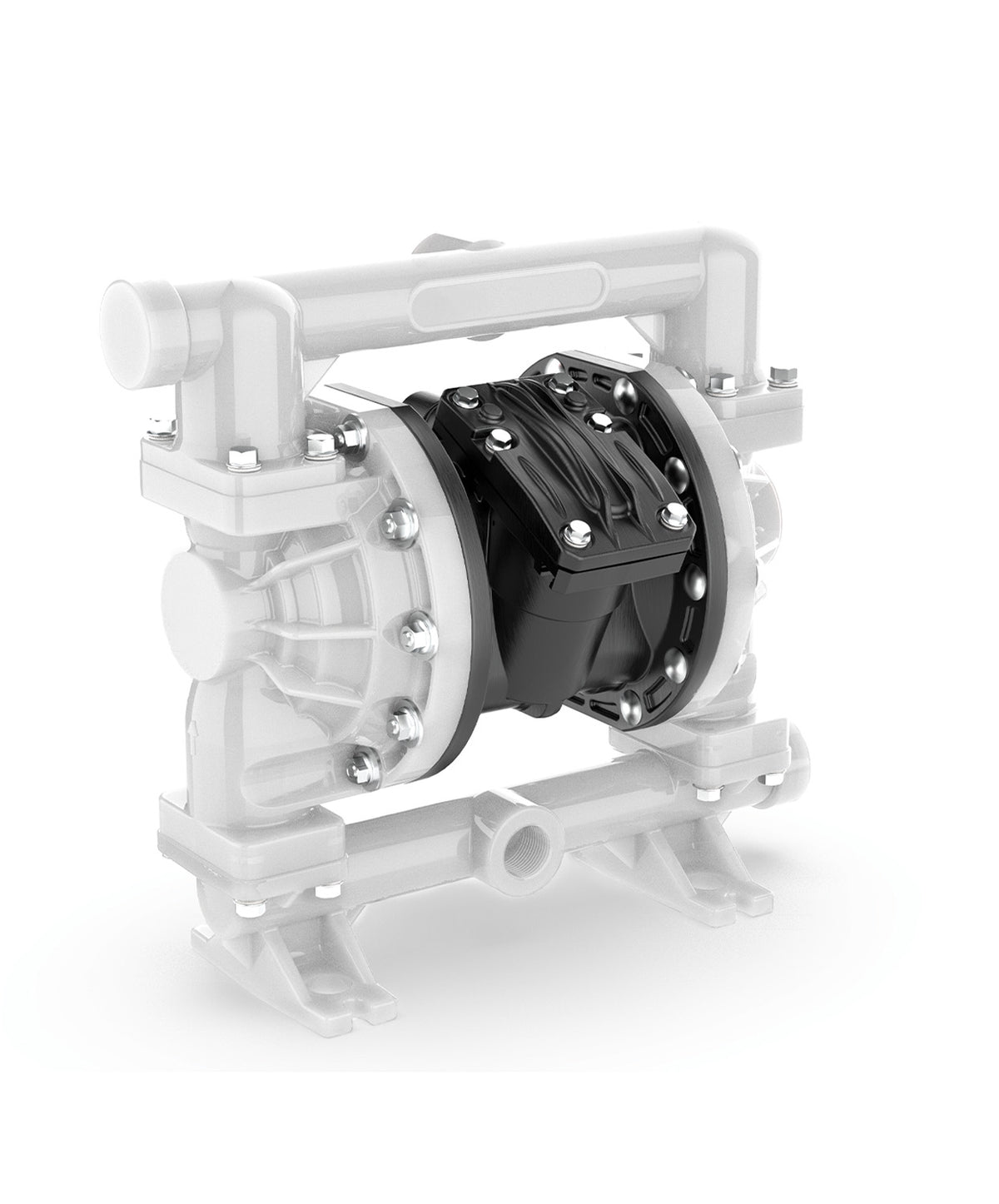

Balcrank UP10 1″ Pump – Polypropylene — manufacturer representative image; configuration and color vary by model

Balcrank 1120-048 — UP10 Polypropylene Diaphragm Pump

SKU: 1120-048 Category: Air & Lubrication Equipment
Built for Fluid Dispensing & Lubrication
Support System Selection & Installation
Coverage Nationwide
$2,107.00
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Air & lubrication equipment

Product details

Overview

Balcrank 1120-048: UP10 air-operated double-diaphragm pump with polypropylene construction for fluid transfer and distribution.

  • Pivot air-valve design.
  • Supports standalone transfer or fluid-distribution installations.
  • Designed for accessible cleaning and maintenance.

Model & configuration

Model / SKU1120-048

Your quote request will include this model and any options selected above.

Specifications

Performance

Listed maximum free-flow rate
53 gal/min
20–100 psi
<td
100 psi
<td

Connections & supply

Fluid inlet and outlet
1 inch NPT(F)
Air inlet
1/2 inch NPT(F)

Dimensions & construction

Body material
Polypropylene
UP10B-TPS-PMA
<td
Polypropylene
<td
Santoprene
<td
1/4 inch (6.4 mm)
<td

Manuals & documents

Download ManualDownload Spec Sheet

Installation, warranty & support

Installation & Service
  • Confirm fluid chemistry, viscosity, temperature, required delivery and the exact pump materials and ratio.
  • Size the drive-air supply separately from fluid-side pressure. Verify relief protection, suction connections and rated downstream components.

Equipment Expertise

Guidance for lifts, air, lubrication, storage, and shop systems

Professional Installation

Installation and commissioning support available

Nationwide Delivery

Equipment delivered directly to your facility

Service After the Sale

Ongoing maintenance and technical support available
