Overview

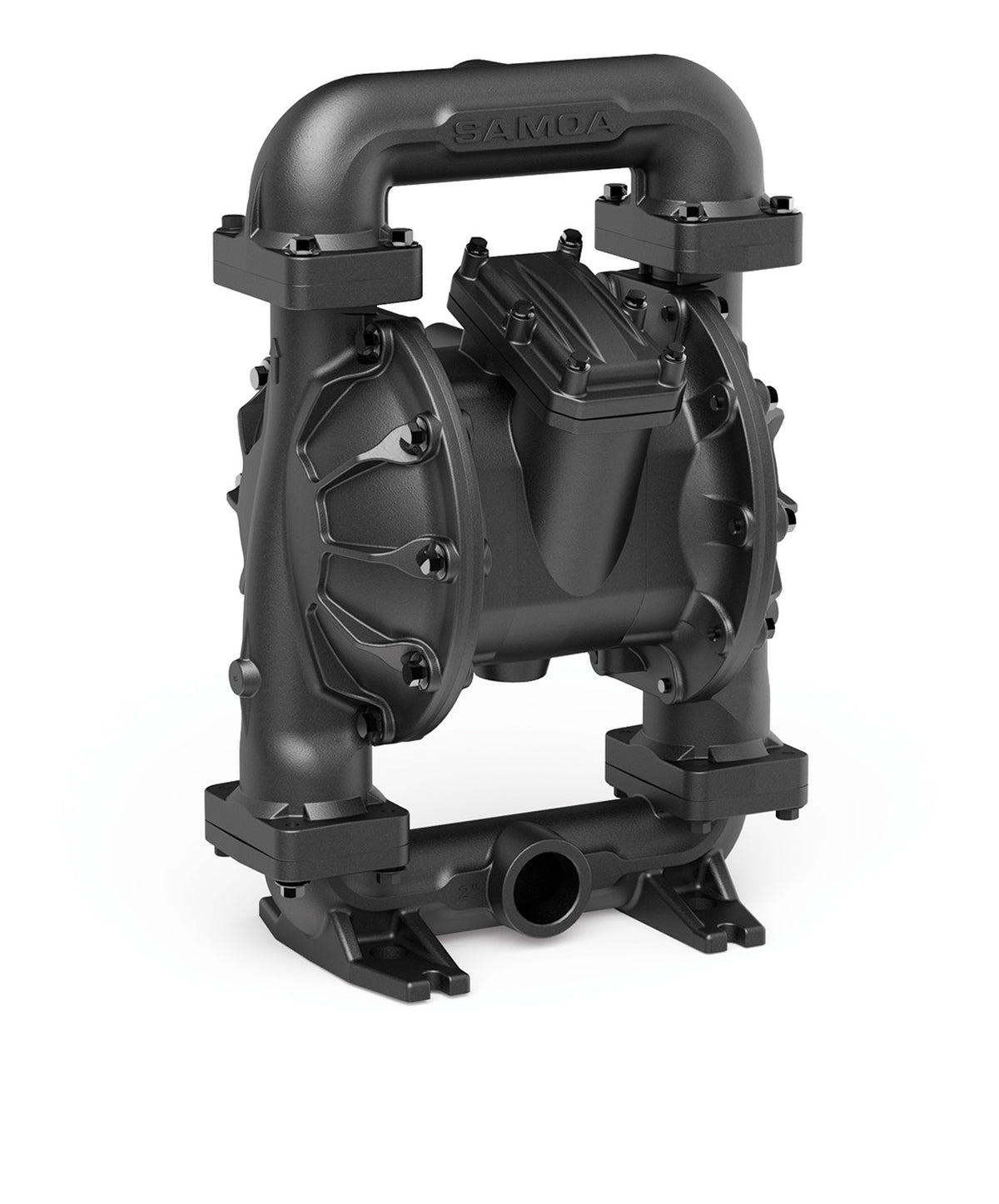

Balcrank 1120-041: 2-inch aluminum air-operated double-diaphragm pump, model UP20A-NAC-HHC, for high-volume fluid transfer and evacuation.
- Diaphragm transfer pump with configuration-specific wetted materials.
Balcrank 1120-041 — UP20 Two-Inch Aluminum Diaphragm Pump
Built for
Fluid Dispensing & Lubrication
Support
System Selection & Installation
Coverage
Nationwide
Regular price
$3,876.00
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Air & lubrication equipment
Product details
Model & configuration
Model / SKU1120-041
2” Diaphragm Pump Aluminum UP20A-NAC-HHC.
Your quote request will include this model and any options selected above.
Specifications
Performance
- 20–120 psi
- <td
Dimensions & construction
- 1120-041
- <td
- UP20A-NAC-HHC
- <td
- Aluminum
- <td
- Hytrel seats, balls and diaphragm (HHC)
- <td
- 1:1
- <td
- 650 L/min (172 US gal/min)
- <td
- 2 inch NPT(F)
- <td
- 3/4 inch NPT(F)
- <td
- 1/4 inch (6.4 mm)
- <td
Manuals & documents
Installation, warranty & support
Installation & Service
- Confirm fluid chemistry, viscosity, temperature, required delivery and the exact pump materials and ratio.
- Size the drive-air supply separately from fluid-side pressure. Verify relief protection, suction connections and rated downstream components.
