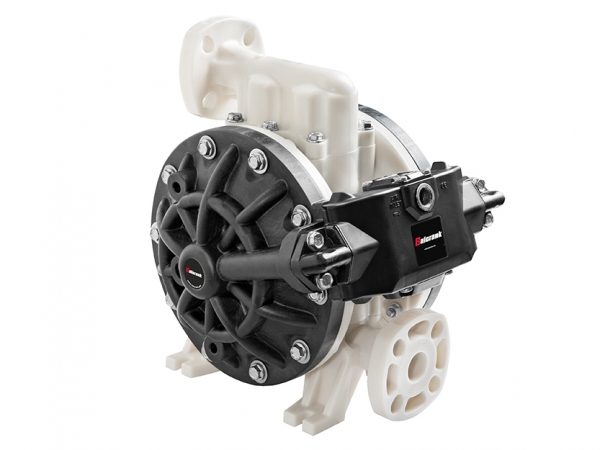

Balcrank CenterFlo CF50 — manufacturer representative image; configuration and color vary by model

Balcrank 1120-038 — CenterFlo CF50 Polypropylene Diaphragm Pump

SKU: 1120-038 Category: Air & Lubrication Equipment
Built for Fluid Dispensing & Lubrication
Support System Selection & Installation
Coverage Nationwide
$2,691.00
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Air & lubrication equipment

Product details

Overview

Balcrank 1120-038: CenterFlo CF50 air-operated double-diaphragm pump for fluid dispensing, transfer and evacuation, with a polypropylene body and flanged fluid connections.

  • Flow-through design for fluid transfer.
  • Air motor designed to resist icing.
  • Inlet and outlet orientation can be adjusted.
  • Diaphragms and air motor can be serviced with the pump installed.

Model & configuration

Model / SKU1120-038

Your quote request will include this model and any options selected above.

Specifications

Performance

Pump ratio
1:1
Maximum free-flow rate
53 gal/min (200 L/min)
Maximum air supply pressure
115 psi (8 bar)
43.5–115 psi, per SB1147 installation and operating instructions
<td

Connections & supply

Fluid inlet and outlet
1 inch ANSI B16.5 Class 150 flange
Air inlet
3/8 inch NPSM(F)

Dimensions & construction

Maximum suspended solids
1/8 inch (3.2 mm)
Weight
23.1 lb
Polypropylene / Viton
<td
PTFE
<td
Hytrel
<td

Manuals & documents

Download ManualDownload Spec Sheet

Included components

  • Polypropylene CF50 pump. Pump-mounting flange kit.

Installation, warranty & support

Installation & Service
  • Confirm fluid chemistry, viscosity, temperature, required delivery and the exact pump materials and ratio.
  • Size the drive-air supply separately from fluid-side pressure. Verify relief protection, suction connections and rated downstream components.
