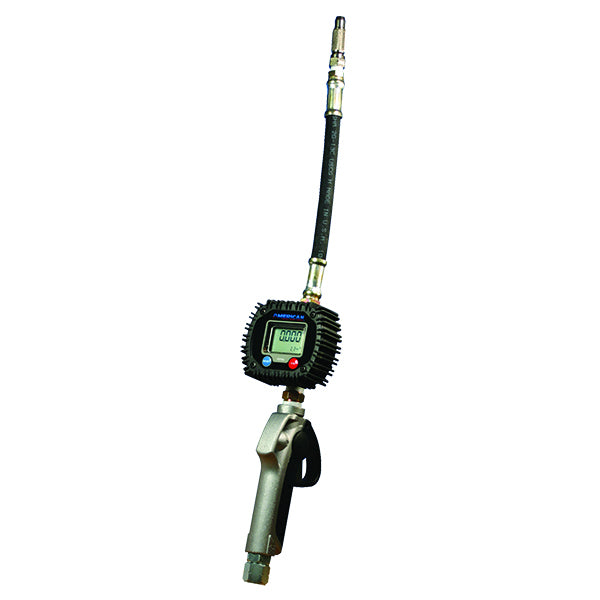

American Lube TIM-600-FM Digital Meter with Flexible Extension & Manual Non-Drip Tip — digital dispensing meter with flexible hose extension and dispensing handle

American Lube TIM-600-FM Digital Meter with Flexible Extension & Manual Non-Drip Tip

SKU: TIM-600-FM Category: Air & Lubrication Equipment
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$361.56
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Air & lubrication equipment

Product details

Overview

Digital Metered Control Handle for Oils or Antifreeze Equipped with flexible extension and manual non-drip tip Meter body designed with field replaceable "plug and play" electronics and isolated fluid chamber 2.5 GPM flow Compatibility:

  • Working flow with the supplied tip: 2.5 GPM.
  • Selected extension and shut-off tip are specified in the model configuration.

Fluid compatibility

  • Automatic Transmission Fluid
  • Gear Oil
  • Hydraulic Oil
  • Motor Oil
  • Synthetic Oil

Model & configuration

Model / SKUTIM-600-FM

Your quote request will include this model and any options selected above.

Specifications

Performance

Working Pressure (Manual Tip)
0 PSI
Maximum Pressure
1,000 PSI
Accuracy
± 0.5%
Working Flow Rate (Standard Tips)
2.5 GPM
Working Flow Rate (High Flow Tips)
4 GPM

Connections & supply

Threads (Swivel)
1/2″-14 NPT (F). NOTE: Sealant required.
Threads (Meter)
1/2″-14 NPT (F x F). NOTE: Sealant required. Do not over torque.

Dimensions & construction

Box Dimensions
5″ x 5″ x 21″
Weight
4 lbs

Included components

  • (1) Manual
  • (1) Parts Breakdown
  • (1) Filter Screen

Installation, warranty & support

Installation & Service
  • Confirm fluid compatibility, dispensing flow, working pressure and the selected extension/nozzle.
  • Flush the supply line, inspect filtration and calibrate the meter for the actual fluid.
  • Plumbing: 1/2″ diameter. Keep plumbing, etc. away from heat sources
  • Sealant: Teflon tape topped with petroleum compatible pipe dope (e.g., Gasoila)
Warranty
  • 3 years from purchase date for defects in material and workmanship, non-wear parts
