At a glance
- Rated capacity
- 7,700 lb. lifting capacity
- Lift design
- Scissor Lift
- Configurations
- 3 available

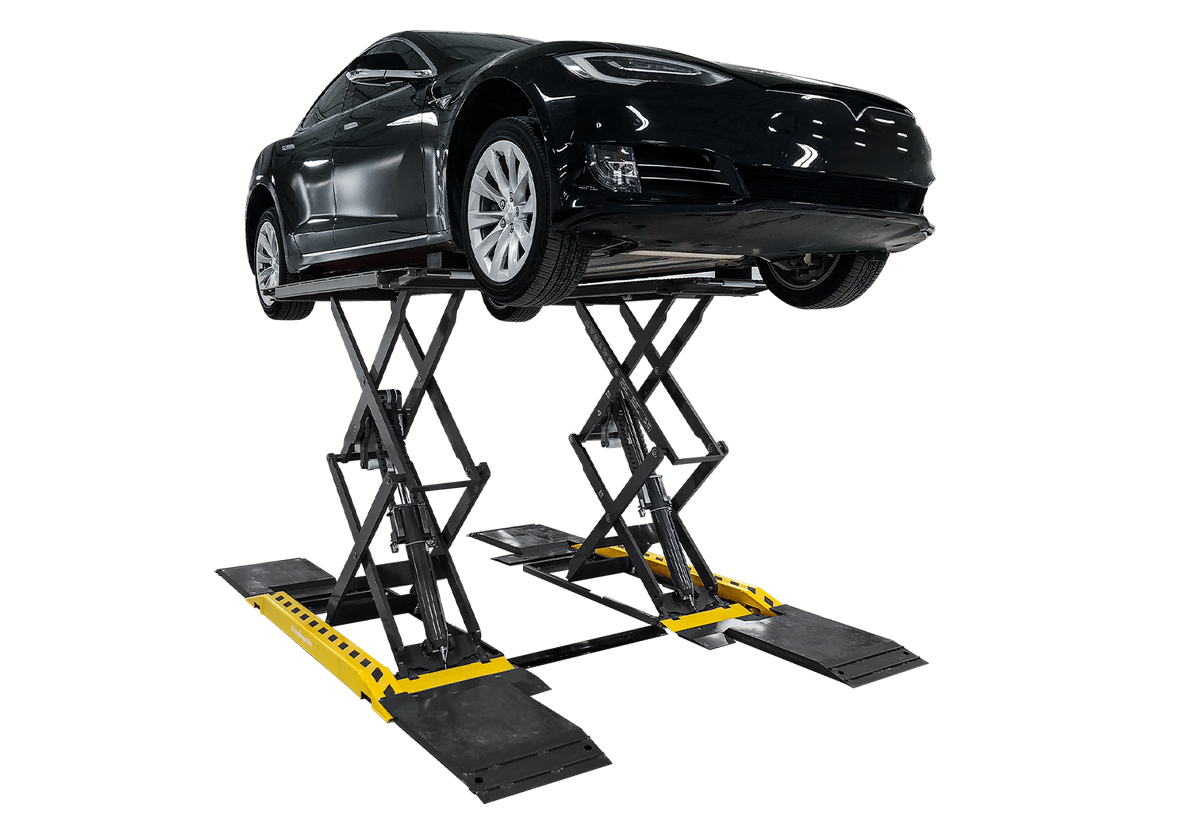

Challenger DX77 Series 7,700 lb Scissor Lift
Built for
Professional Service Facilities
Support
Installation Available
Coverage
Nationwide
Regular price
$18,706.24
Financing available.
Learn more
Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.
Lift overview
Built around your service bay.

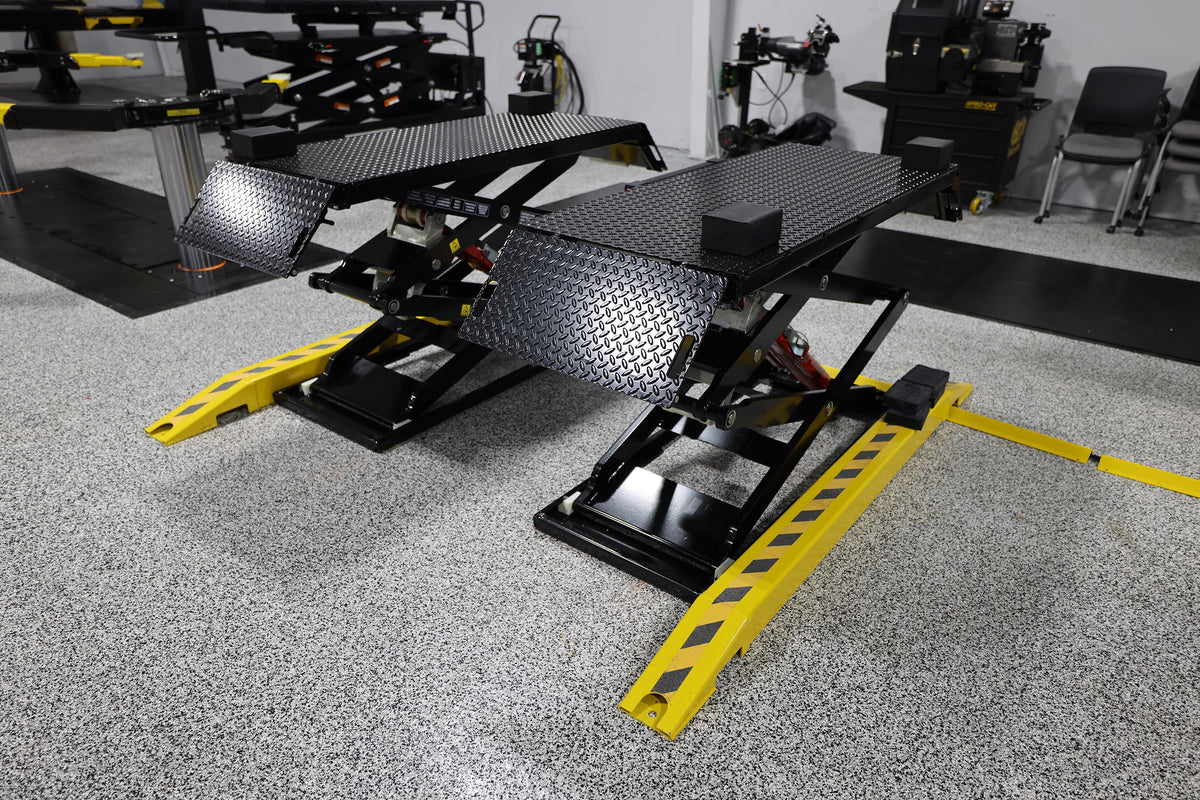

The Challenger DX77 is a double-scissor lift for express service, body shops and narrow bays. Surface-mount, flush-mount and extended-ramp configurations are available. Rated capacity varies with lift height; confirm the manufacturer’s capacity chart for the required operating height.
Built for your workflow
- Automotive service
- Confirm vehicle lifting points, load distribution and fit.
Plan your bay
- Verify the floor or pit, installation clearances, power supply and any compressed-air requirement against the selected configuration manual.
- Confirm platform contact points, load distribution and approved vehicle dimensions before lifting.
- The manual limits capacity to 3,850 lb at 3 inches net rise; 7,700 lb applies at 7 inches net rise. Follow the full load-height limits.
Selected modelDX77-EXT
Model DX77-EXT
Selected configuration
- Model
- DX77-EXT
- Configuration
- Surface Mounted Double Scissor Lift With Electric/Hydraulic Power Control Console. Includes (4) 1.5 In. Rubber Spotting Blocks And (4) 3 In. Rubber Spotting Blocks With Extended Ramps
Manufacturer specifications · selected model
- Lifting Capacity
- 7,700 lbs.
- Installation
- Standard
- Rise Height
- 74.5”
- Overall Length
- 83.25”
- Overall Width
- 82”
- Platform Length
- 59”
- Platform Width
- 24.5”
- Width Between Platforms
- 21 - 27”
- Ramp Length
- Lowered Height
- 4.5”
- Motor
- 2HP, Single Phase, 60Hz
- Voltage
- 208/220v
- Air Supply Required
- 90 - 120 psi
- Rise Time
- 43 s
- Max Load per Platform
- 3,850 lbs.
- Colors Available
- Black
Family specifications & equipment
- Capacity
- 7,700 lb. lifting capacity
- Dimensions & reach
- 74.5” rise height (70″ if flush mounted)
- Dimensions & reach

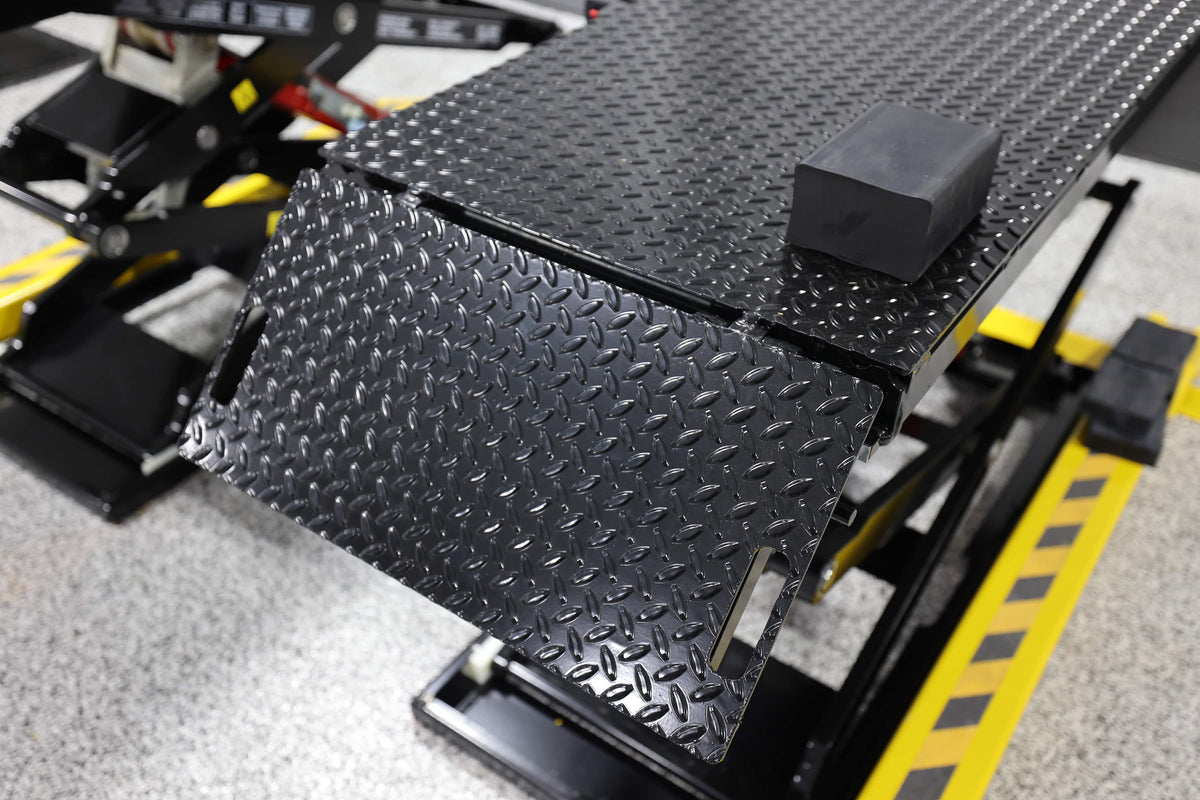

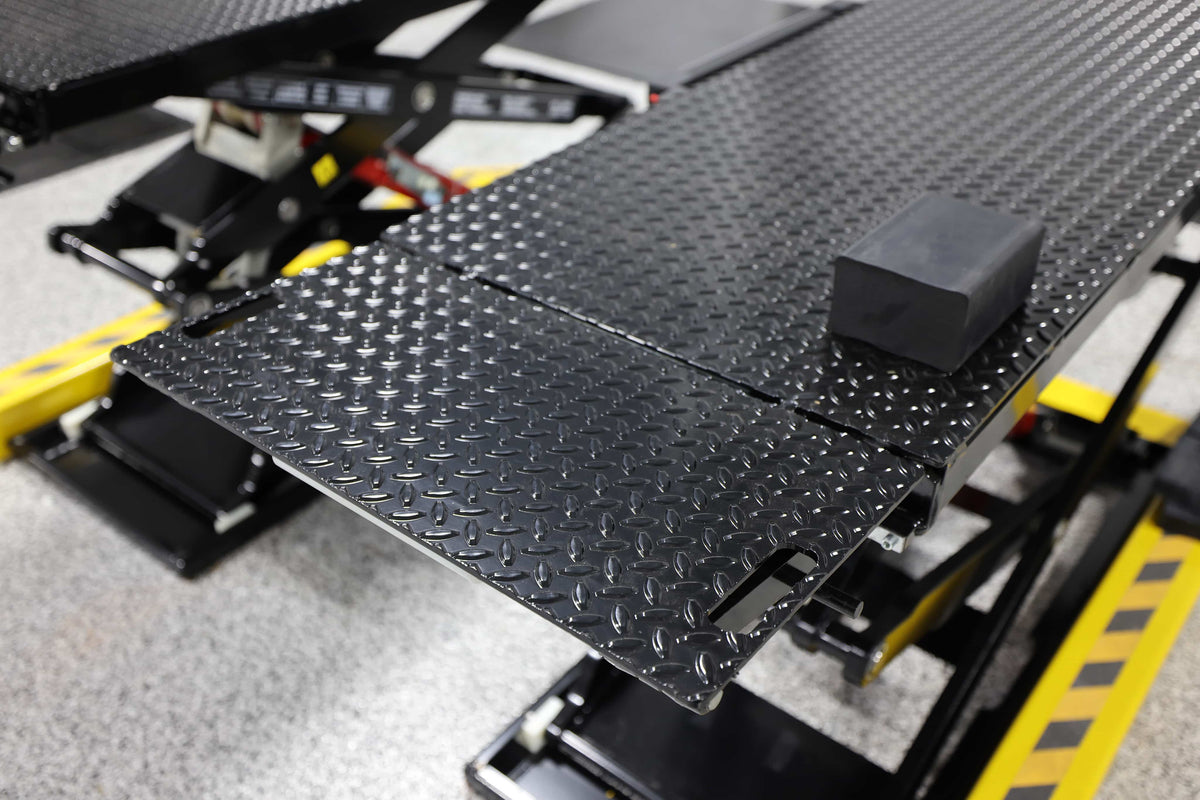

- Reinforced diamond-plate front and rear access ramps are designed to easily flip up and lock to extend the platform load length, which will accommodate longer wheelbase vehicles
- Dimensions & reach

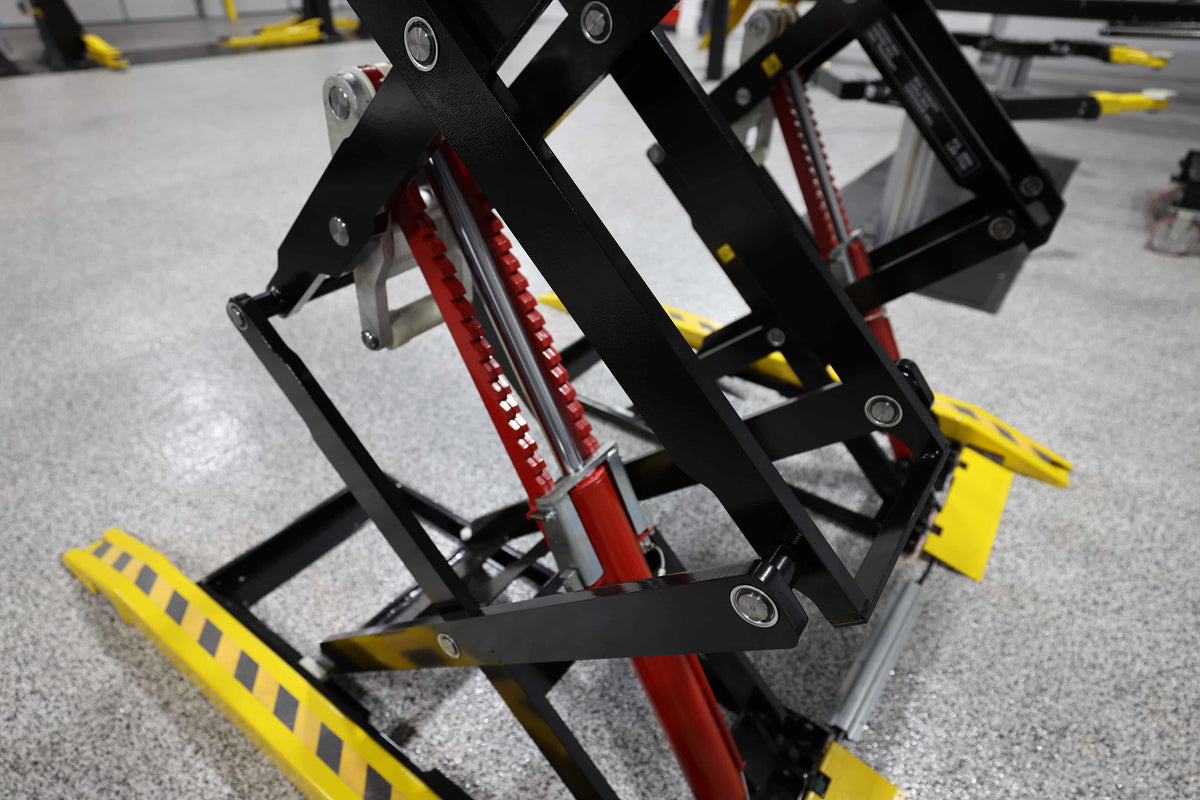

- Double scissor lifting for taller rise allows more overall working clearance
- Dimensions & reach

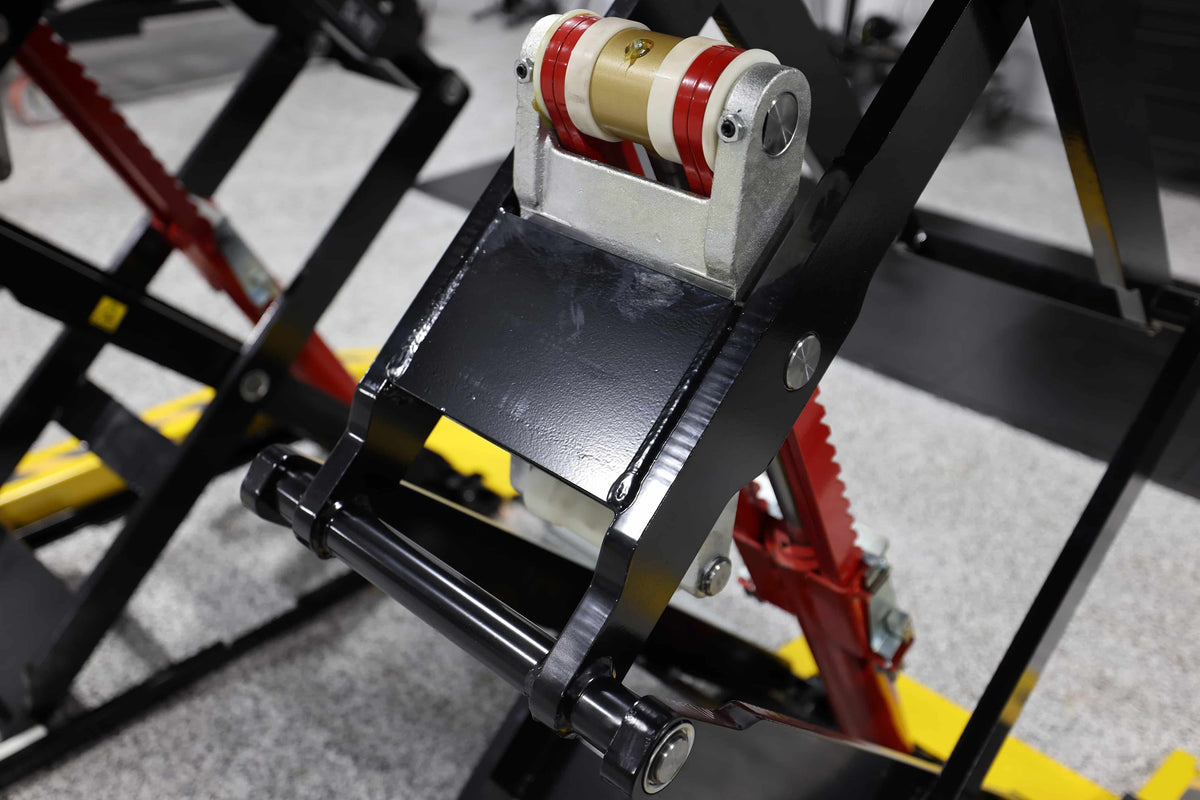

- Single point air actuated lock release allows ergonomic working height for technicians to increase productivity and minimize fatigue
- Power & controls
- Power unit console includes three simple push button controls
- Design & equipment
- 3” rubber spotting blocks (set of 4) and 1.5” rubber spotting blocks (set of 4) included
- Design & equipment
- Extended ramp kit available for low profile vehicles
- Design & equipment
- Powder coat finish provides long-lasting durability
- Design & equipment
- Can be mounted above ground or flush
Manuals & specifications
Installation, operation & maintenance manual Download spec sheet Manufacturer product pageUse the manual for the selected control package and model revision.
Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
Find the right configuration.
Compare column height, controls and equipment packages. Your selected model stays connected to the quote button above.
Selected model
DX77-EXT
- Configuration
- Surface Mounted Double Scissor Lift With Electric/Hydraulic Power Control Console. Includes (4) 1.5 In. Rubber Spotting Blocks And (4) 3 In. Rubber Spotting Blocks With Extended Ramps
Configuration includes
Verify the final package and any additional adapters for your vehicle application.
Design & equipment
Crossmember-free hydraulic synchronization.
Design & equipment
Surface and flush installation options.
Design & equipment
Flip-up ramps extend the platforms.
Design & equipment
7,700 lb. lifting capacity
Design & equipment
74.5” rise height (70″ if flush mounted)
Design & equipment
Reinforced diamond-plate front and rear access ramps are designed to easily flip up and lock to extend the platform load length, which will accommodate longer wheelbase vehicles
Design & equipment
Double scissor lifting for taller rise allows more overall working clearance
Design & equipment
Single point air actuated lock release allows ergonomic working height for technicians to increase productivity and minimize fatigue
Design & equipment
Power unit console includes three simple push button controls
Design & equipment
3” rubber spotting blocks (set of 4) and 1.5” rubber spotting blocks (set of 4) included
Design & equipment
Extended ramp kit available for low profile vehicles
Design & equipment
Powder coat finish provides long-lasting durability
Design & equipment
Can be mounted above ground or flush
Installation & service
Verify the floor or pit, installation clearances, power supply and any compressed-air requirement against the selected configuration manual.
Installation & service
Confirm platform contact points, load distribution and approved vehicle dimensions before lifting.
Installation & service
The manual limits capacity to 3,850 lb at 3 inches net rise; 7,700 lb applies at 7 inches net rise. Follow the full load-height limits.
Warranty
Confirm the manufacturer’s written warranty for the supplied model and installation with your quote.
Shipping & lead time
Freight, availability, lead time and unloading requirements are confirmed with your quote.
