Challenger 44030 Series 30,000 lb Heavy-Duty Four-Post Lift

SKU: 44030 Category: Heavy-Duty Lifts
Built for Professional Service Facilities
Support Installation Available
Coverage Nationwide
$36,256.27
Financing available. Learn more
CALL NOW (866) 608-5565

Final fitment, freight, lead time, and order details are confirmed by Region Equipment before completion.

Lift overview

Built around your service bay.

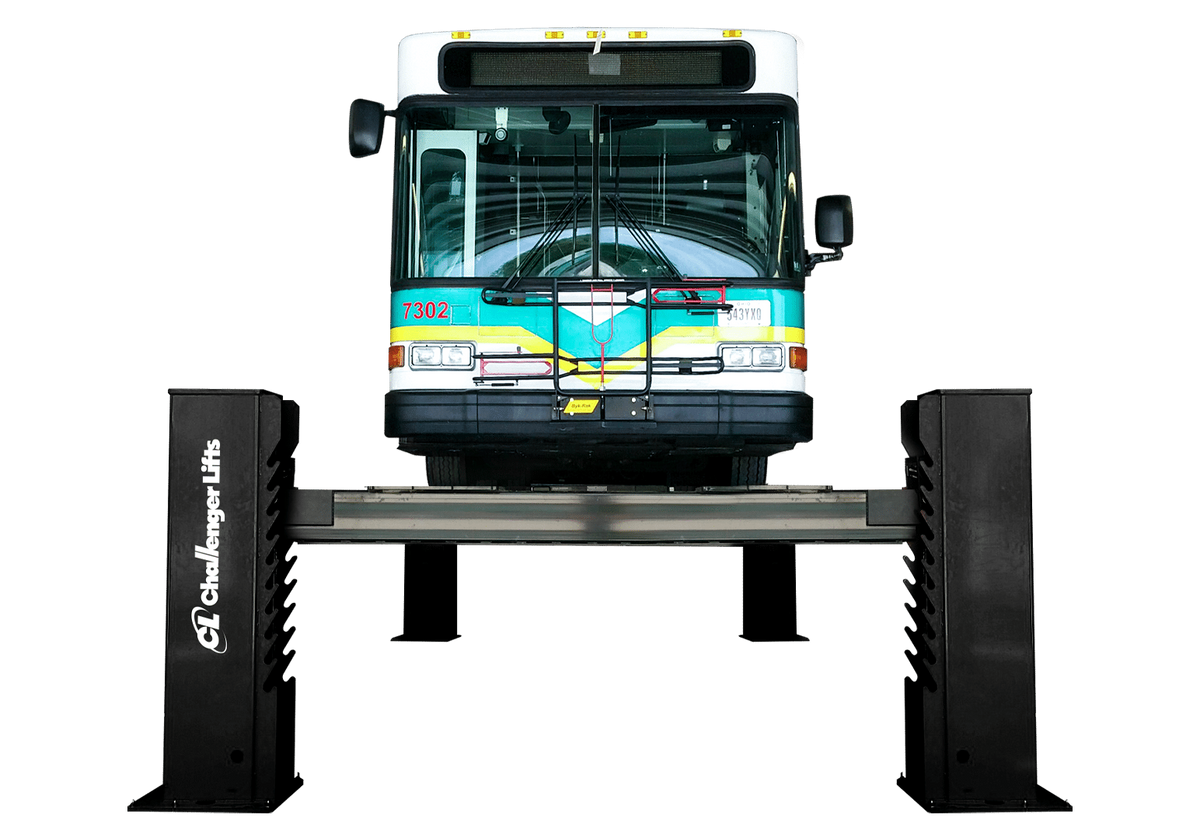

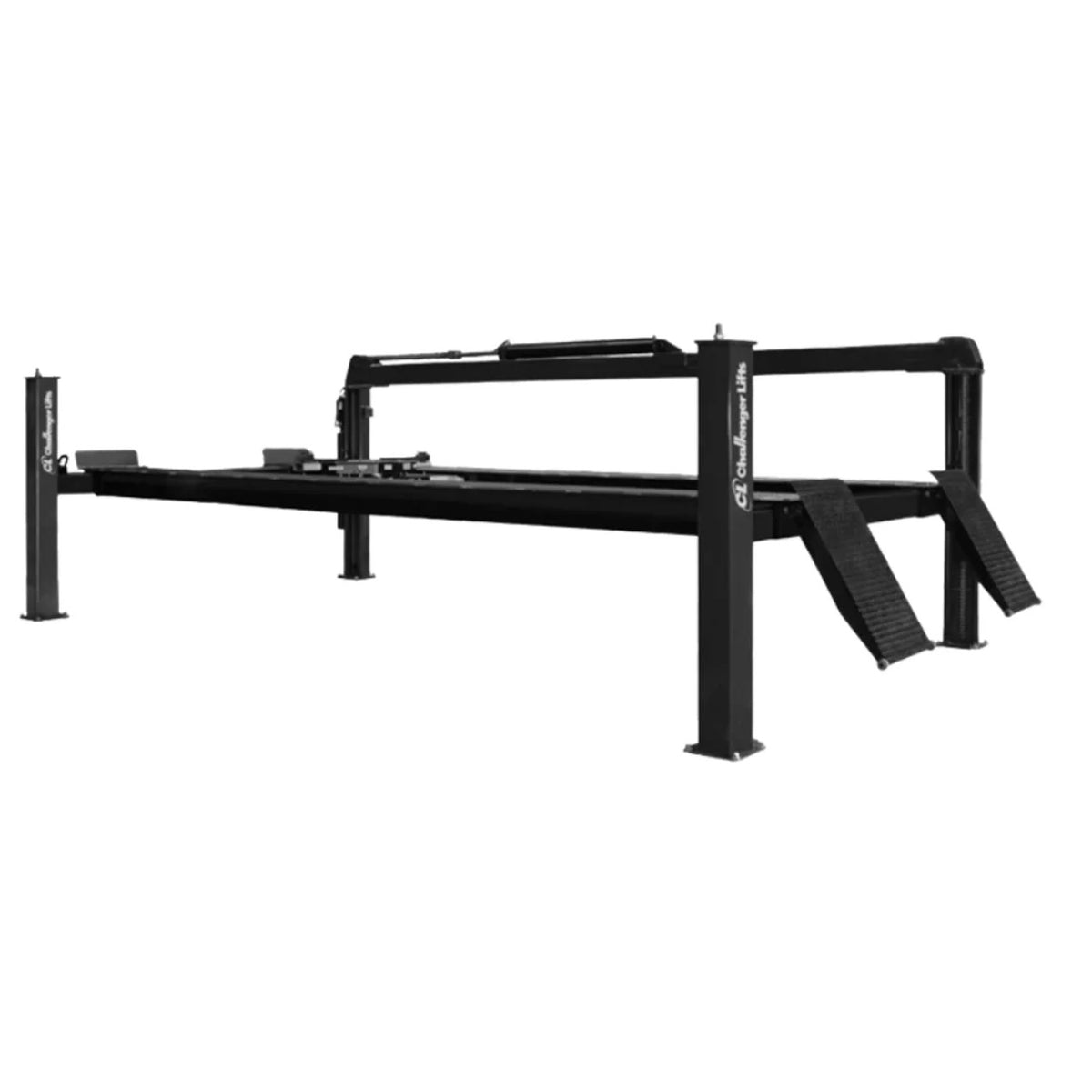

The Challenger 44030 Series is a 30,000 lb chain-driven four-post lift for commercial vehicle service. Standard, extended and extra-long configurations include general-service and alignment options.

At a glance

Rated capacity
30,000 lb rated lifting capacity
Lift design
Heavy-Duty Four-Post Lift
Configurations
6 available
View full specifications

Built for your workflow

  • Fleet and commercial vehicle service
  • Confirm the selected model’s wheelbase, dimensions and capacity.

Plan your bay

  • Verify the slab, anchoring, bay dimensions, electrical supply and any required compressed air against the selected model manual.
  • Confirm wheelbase, track width, axle loads and runway length; verify which alignment and rolling-jack accessories are included.
Installation details
Selected model44030

Model 44030

Selected configuration

Model
44030
Configuration
Chain Driven 4-Post Lift With 24 In. Wide Runways, 6 Position Locks With Single Point Air Lock Release, 149.5 In. Overall Width, 295.5 In. Overall Length. Comes with EVFPK footpads.

Manufacturer 44030 spec sheet · selected model

Overall length
24 ft 7.5 in.
Between columns
233.75 in.
Maximum wheelbase
230 in.
Overall width
149.5 in.
Inside columns
132.5 in.
Overall height
92 in.
Runway height
9 in.
Runway width
24 in.
Runway spacing
54–75 in.
Rise height
68 in.
Rise time
105 sec.

Manufacturer specifications · selected model

Lifting Capacity
30,000 lbs.
Max Wheelbase
230"
Rise Height
68"
Overall Length
24' 7.5"
Overall Width
12' 5.5"
Inside Columns
132.5"
Between Columns
233.75"
Height Overall
92"
Height of Runways
9"
Width of Runways
24"
Width Between Runways
54" - 75"
Width Between Runways with jacks
NA
Motor / Voltage
3HP, 208-230v Single Phase
Amps
30
Speed of Rise
105 s
Colors Available
Black

Family specifications & equipment

Capacity
30,000 lb rated lifting capacity
Design & equipment
24 in. wide runways
Design & equipment
Six locking positions with single-point pneumatic release
Design & equipment
Configuration-specific dimensions and included equipment are shown below

Manuals & specifications

Installation, operation & maintenance manual Download spec sheet Manufacturer product page

Use the manual for the selected control package and model revision.

Family specifications describe the published equipment. Options may change dimensions, power requirements, certification and included equipment. Confirm the exact selected model and supplied documentation before ordering or installation.
